| Additional Information | : | Auto Thermal Protection, Reversible Rotation, 1-Pole |
| Amperage Rating | : | 5.8 A |
| Bearing Type | : | Ball |
| Enclosure Type | : | Open Air Over |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/3 hp |
| Insulation Class | : | B |
| Mounting Type | : | Bracket, Thru-Bolt |
| Number of Speeds | : | 1 |
| Overall Depth | : | 6.8 in |
| Overall Height | : | 7-1/2 in |
| Overall Width | : | 14.8 in |
| Phase | : | 1 ph |
| Shaft Size | : | 0.5 x 1.85 in |
| Speed Rating | : | 1725 rpm |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 115 V |

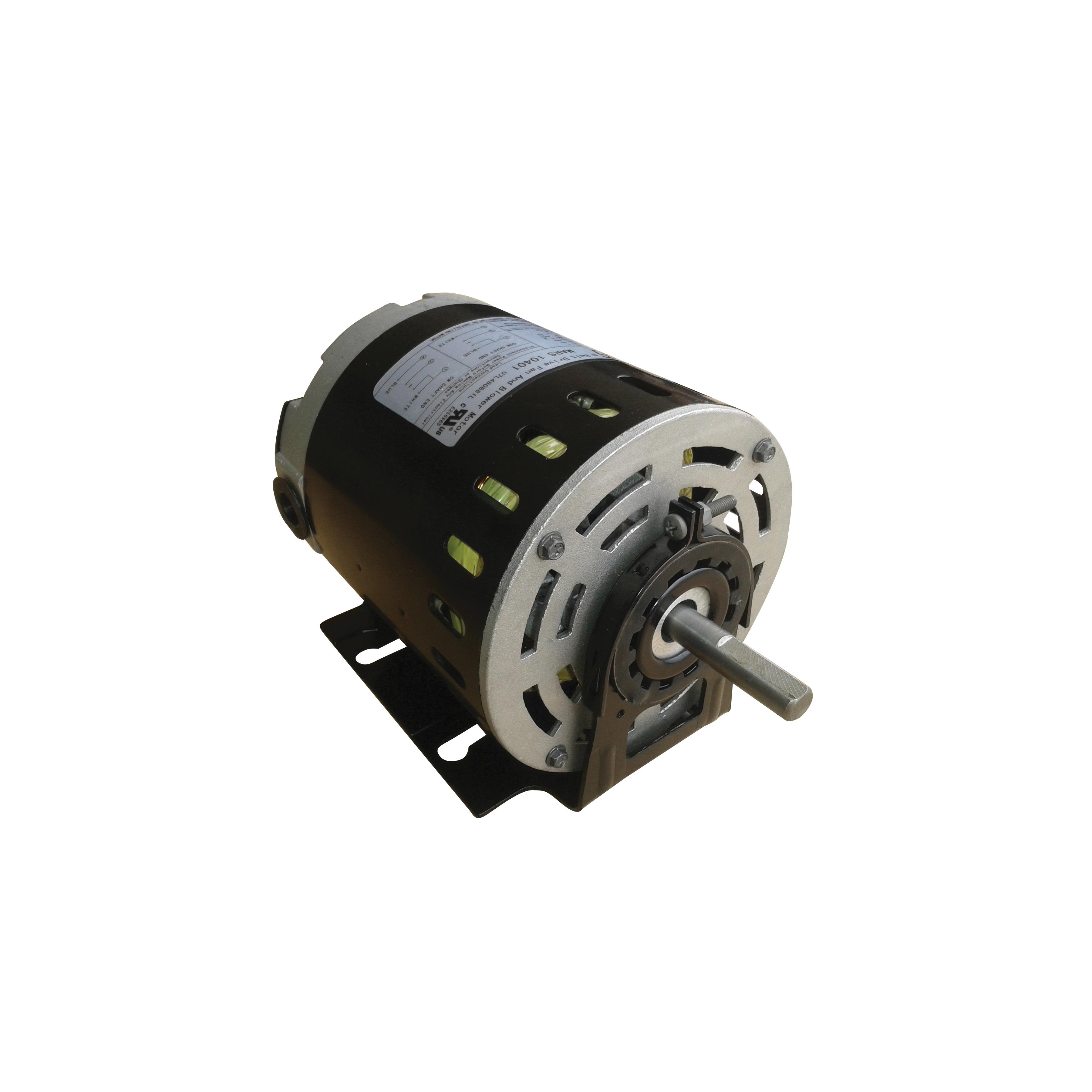

Mars® Split-Phase Motor, 1/3 hp, 115 V, 5.8 A, 60 Hz, 1 ph Phase, 1725 rpm, 1 Speed, Open Air Over Enclosure, 48 Frame, 0.5 x 1.85 in Shaft, Ball Bearing, Bracket, Thru-Bolt Mounting, 40 deg C, B Insulation Class, 14.8 in Overall Width, 6.8 in Overall Depth, 7-1/2 in Overall Height, Auto Thermal Protection, Reversible Rotation, 1-Pole Additional Information
