| Amperage Rating | : | 4.3 A |
| Bearing Type | : | Ball |
| Enclosure Type | : | Open Air Over |
| Frame | : | 48Y |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/4 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | Bracket, Resilient Base, Thru-Bolt |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Shaft Size | : | 0.5 in Dia x 1.85 in L |
| Speed Rating | : | 1725 rpm |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 115 V |

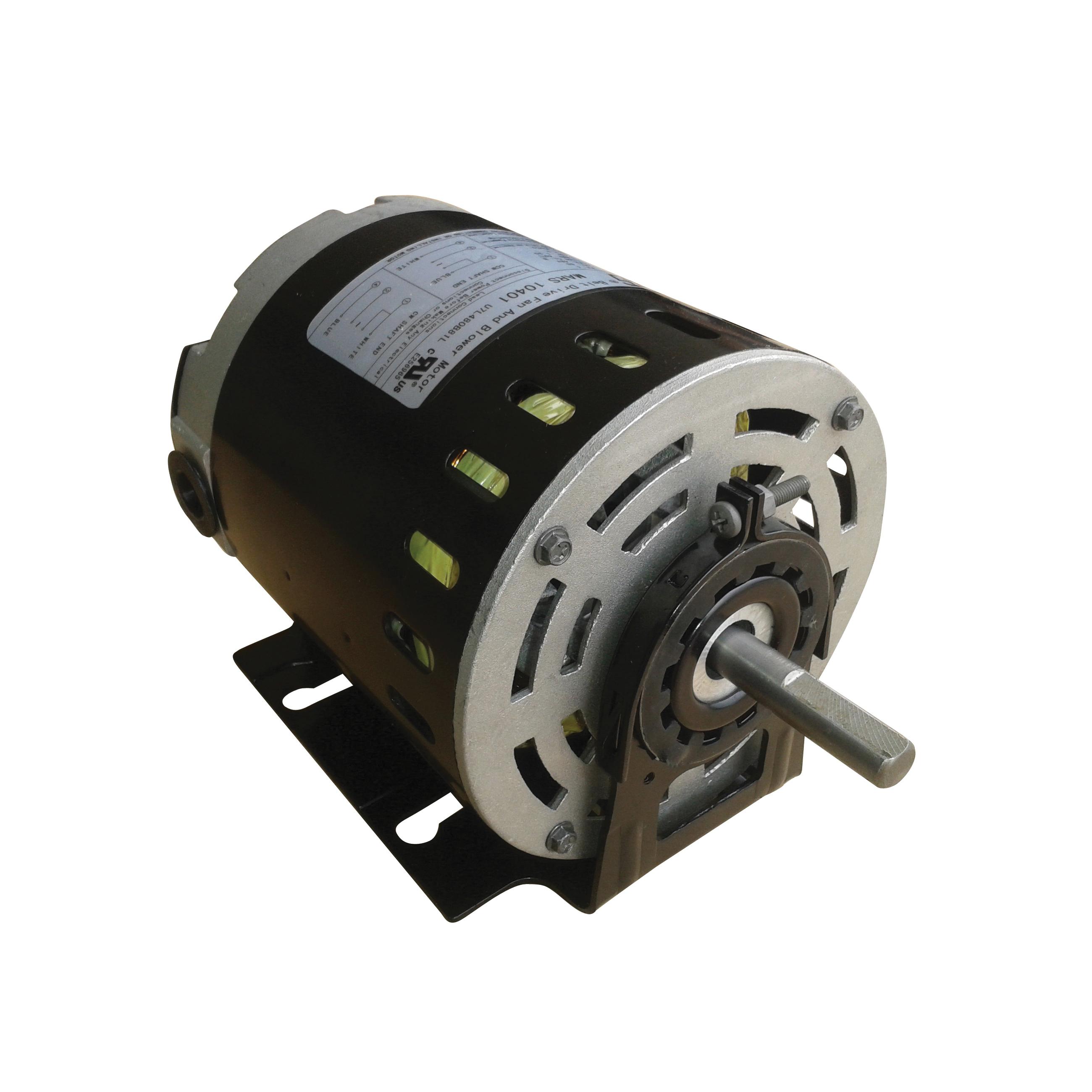

Mars® belted blower motors are designed to meet manufacturer's requirements for belted fan or blowers.
Mars® Split Phase Belted Fan and Blower Motor, 1/4 hp HP Rating, 115 V, 4.3 A, 60 Hz, 1 ph, 1725 rpm Speed Rating, 1 Speed, Open Air Over, 48Y Frame, 0.5 in Dia x 1.85 in L Shaft, Ball Bearing, Bracket, Resilient Base, Thru-Bolt Mount, 40 deg C, Insulation Class: Class B
- Slotted holes in base match 48/56 frame bolt patterns
- Thermal overload protected
- 36 in leads
- Reversible rotation
