| Drive Size | : | 1/4 in |
| Drive Type | : | Hex |
| Finish | : | Zinc-Plated |
| Head Size | : | 1/4 in |
| Head Type | : | Slotted |
| Material | : | Sheet Metal |
| Overall Length | : | 1/2 in |
| Thread Size | : | #10 |

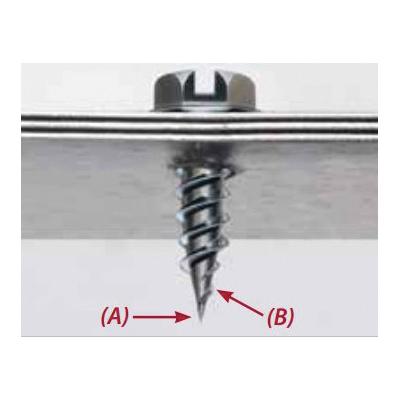

Zip-in® sophisticated heat treat process allows the screw to taper to a fine, sharp point without sacrificing critical point strength. A single starting thread is machined down to the very tip of the point and is the source of Zip-in® penetrating power. The second thread above the point engages after initial penetration and moves the screw through very fast. Zip-in® screws are faster driving, with a greater capacity for fastening heavier gauges of sheet metal than any other self-drilling type.
Malco® Self-Piercing Sheet Metal Screw, #10 Thread, 1/2 in Overall Length, 1/4 in Head, Slotted Head, 1/4 in Drive, Hex Drive, Sheet Metal, Finish: Zinc-Plated
- Undercut - always seats flush
- One 1/4 in hex driver accommodates all sizes of Zip-in® screws
- Full 1/4 in (#8) head will not strip out of hex driver opening at any time during operation
- Starting thread machined down to very tip of screw point
- Instantly penetrates and engages in heavy gauge sheet metal and layered light gauge
- Quality controlled heat treat
- Sharp tapered point will not mushroom, break or walk
- Complete operator control with precise hole alignment
