| Amperage Rating | : | 5 A |
| Color | : | Light Almond |
| Dimensions | : | 4-1/2 in H x 2-1/4 in W |
| Enclosure Type | : | NEMA WD-7 |
| Frequency Rating | : | 50/60 Hz |
| Lamp Type | : | CFL, Electronic Fluorescent, Halogen, Incandescent, LED, Magnetic Fluorescent |
| Mounting Type | : | In-Wall |
| Number of Poles | : | 1 |
| Sensing Angle | : | 180 deg |
| Sensor Type | : | Occupancy, Passive Infrared, Vacancy |
| Series | : | Maestro Series |
| Temperature Rating | : | 30 to 104 deg F |
| Timer Range | : | 1 min, 5 min, 15 min, 30 min |
| Voltage Rating | : | 120 V |

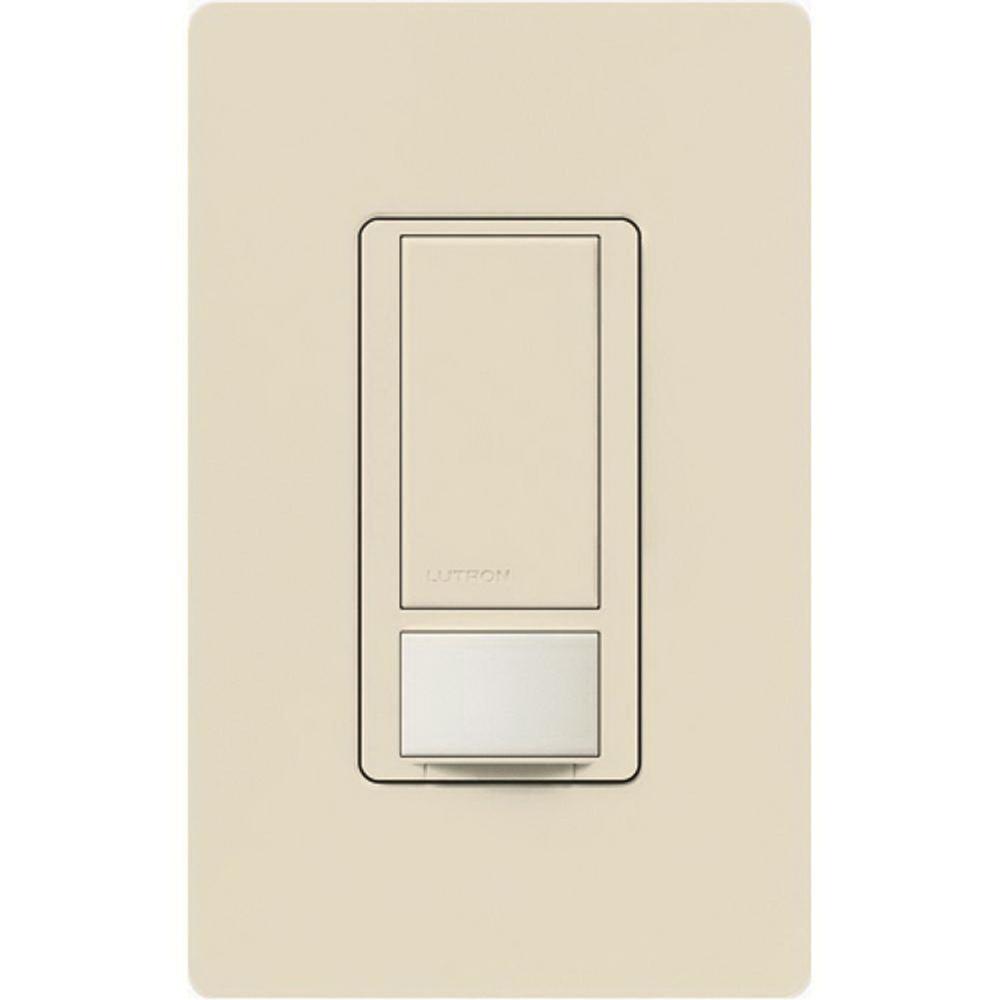

The Lutron® Maestro occupancy sensor switch combines a maestro switch with a passive infrared occupancy or vacancy sensor. The sensor detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensor switch will adjust the load accordingly.
Lutron® Occupancy and Vacancy Sensing Switch, Series: Maestro Series, 120 V, 5 A, 50/60 Hz, 1 Pole, CFL, Electronic Fluorescent, Halogen, Incandescent, LED, Magnetic Fluorescent Lamp, Occupancy, Passive Infrared, Vacancy Sensor, 180 deg Sensing, 1 min, 5 min, 15 min, 30 min Timer, 30 to 104 deg F, NEMA WD-7, In-Wall Mount, Light Almond, 4-1/2 in H x 2-1/4 in W
- Passive infrared sensor with exclusive Lutron® XCT technology for fine motion detection
- 180 deg sensor field of view
- Occupancy version can be set to auto-on/auto-off or manual-on/auto-off
- Vacancy model meets CA Title 24 requirements
- Adjustable timeout (1, 5, 15 or 30 min) and high or low sensitivity adjustment
- Load types incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent and fan
