| Additional Information | : | 11 in L Pump |
| Amperage Rating | : | 1 A |
| Capacity | : | 0.5 gal |
| Cord Size | : | 6 ft |
| Dimensions | : | 11 in L x 5 in W x 7 in H |
| Discharge Size | : | 0.38 in |
| Flow Rate | : | 1.08 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/50 hp |
| Impeller Material | : | Glass Filled Polypropylene |
| Inlet Size | : | 1-1/8 in |
| Material | : | Plastic |
| Model | : | VCMA-15ULS |
| Power Rating | : | 60 W |
| Pressure Rating | : | 6.5 psi |
| Series | : | VCMA-15 Series |
| Shut-Off Head | : | 15 ft |
| Suction Lift | : | 4.5 m |
| Suction Size | : | 4.5 m |
| Tank Size | : | 0.5 gal |
| Temperature Rating | : | 75 deg F Fluid |
| Voltage Rating | : | 115 VAC |

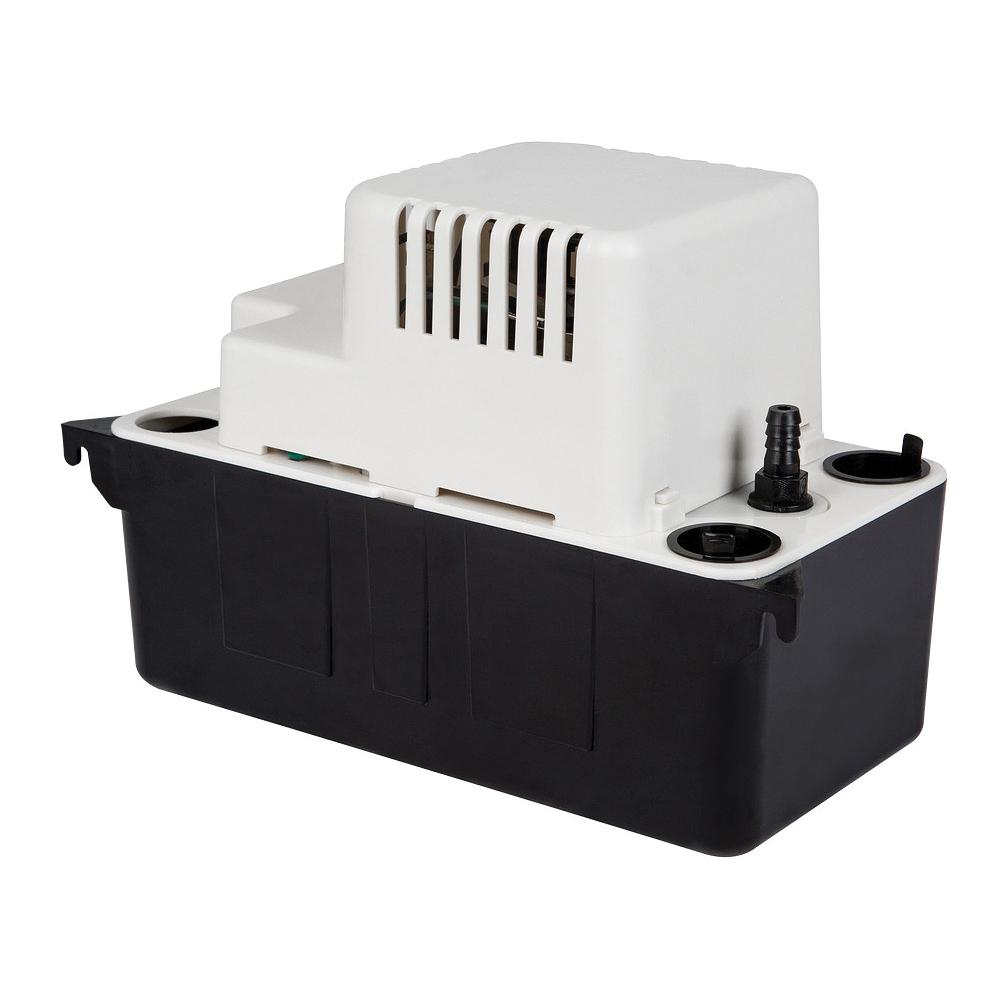

The VCMA-15 Series condensate pump is a 1/50 hp condensate pump that is great for collecting, detecting, and removing condensation from air conditioners. Its robust design is also suitable for high-efficiency gas furnace condensation and condensing boilers. Includes 1/2 gal tank capacity.
Little GIANT® Condensate Pump, VCMA-15 Series, Model: VCMA-15ULS, 115 VAC, 1 A, 60 W, 1/50 hp, 60 Hz, 1.08 gpm Flow Rate, 4.5 m Suction, 0.38 in Discharge, 0.5 gal Capacity, Glass Filled Polypropylene Impeller, 0.5 gal Tank, 4.5 m Suction Lift, Shut-Off Head: 15 ft, 1-1/8 in Inlet, 6 ft Cord, 6.5 psi, 75 deg F Fluid, 11 in L x 5 in W x 7 in H, Plastic, Additional Information: 11 in L Pump
- ABS tank, motor cover and volute
- Stainless steel shaft
- Removable 3/8 in (9.5 mm) barbed check valve
- Three inlet drain holes
- Thermal overload protection
- Automatic start and stop operation
- Thermally protected, fan cooled motor
- Built-in wall-mount tabs on tank
- 6 ft three conductor cables with grounded three prong plug
- Glass filled polypropylene impeller
- Acetal check valve
- Snap action switch
