| Amperage Rating | : | 1.5 A |
| Cord Size | : | 6 ft L |
| Dimensions | : | 10.2 in L x 4.8 in W x 6.5 in H |
| Discharge Size | : | 0.38 in |
| Flow Rate | : | 1.4 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/30 hp |
| Housing Material | : | Thermoplastic |
| Model | : | VCMX-20UL |
| Operating Temperature | : | 140 deg F |
| Power Rating | : | 93 W |
| Series | : | VCMX-20 |
| Voltage Rating | : | 115 VAC |
Condensation build-up in air conditioning equipment can wreak havoc on your HVAC system. Little Giant®'s VCMX Series provides a high-capacity option for the automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible. Its slim footprint makes it the optimal choice for tight spaces. Our VCMX-20 Series effectively delivers high-efficiency condensate removal from air conditioners, gas furnaces and condensing boilers.

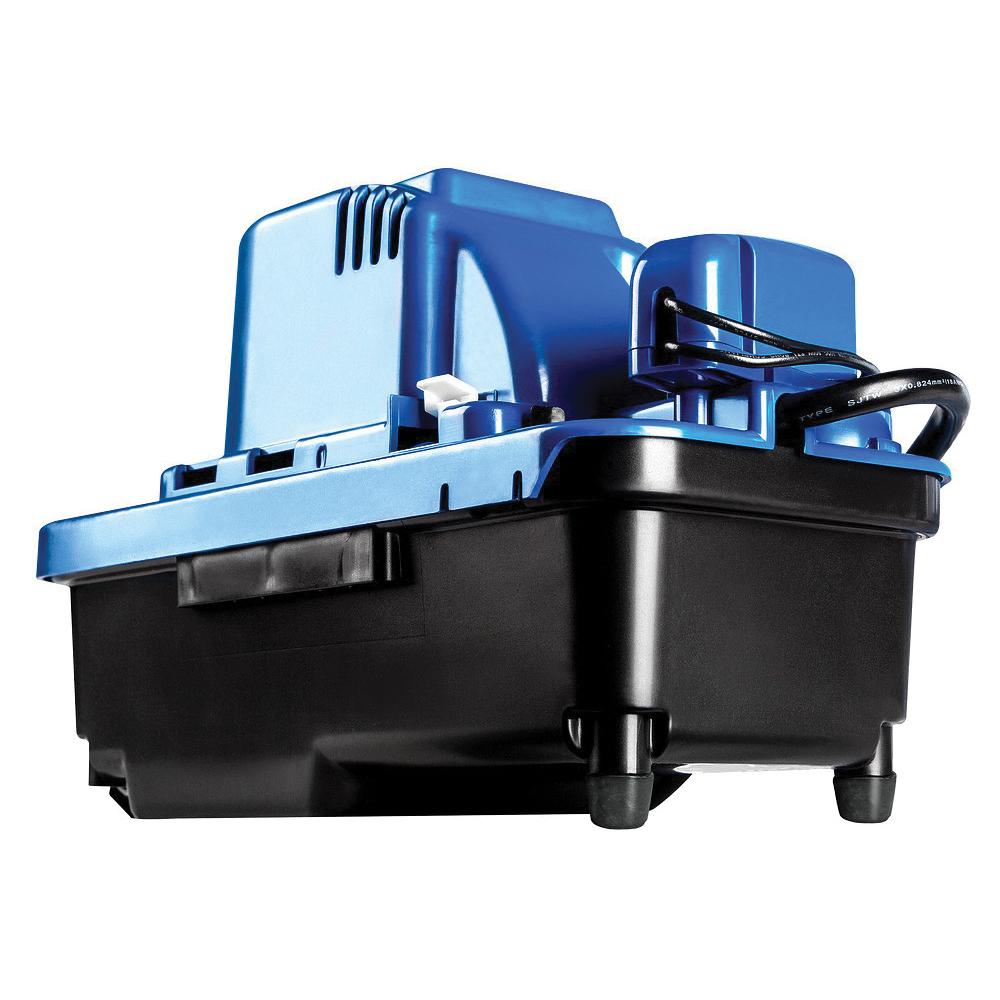

Little GIANT® Condensate Pump, Series: VCMX-20, Model: VCMX-20UL, 115 VAC, 1.5 A, 60 Hz, 93 W Power, HP Rating: 1/30 hp, 0.38 in Discharge, 1.4 gpm Flow Rate, 6 ft L Cord, 140 deg F Operating, Thermoplastic Housing, 10.2 in L x 4.8 in W x 6.5 in H
- 1/30 hp high-performance motor
- ABS tank, motor cover and volute
- Stainless steel motor shaft
- Fully automatic start/stop and safety switch operations
- Thermally protected fan-cooled motor to prevent overheating and possible motor damage
