| Air Flow Capacity | : | 32 - 64 cu-ft/min at 0.3 in WG |
| Amperage Rating | : | 0.48 A |
| Coverage Area | : | 1000 sq-ft |
| Effectiveness | : | 78% at 55 cu-ft/min and 32 deg F |
| Finish | : | Pre-Painted Galvanized |
| Frequency Rating | : | 60 Hz |
| Material | : | Steel |
| Power Rating | : | 44 W Low Speed, 57 W High Speed |
| Series | : | ERV |
| Voltage Rating | : | 120 VAC |

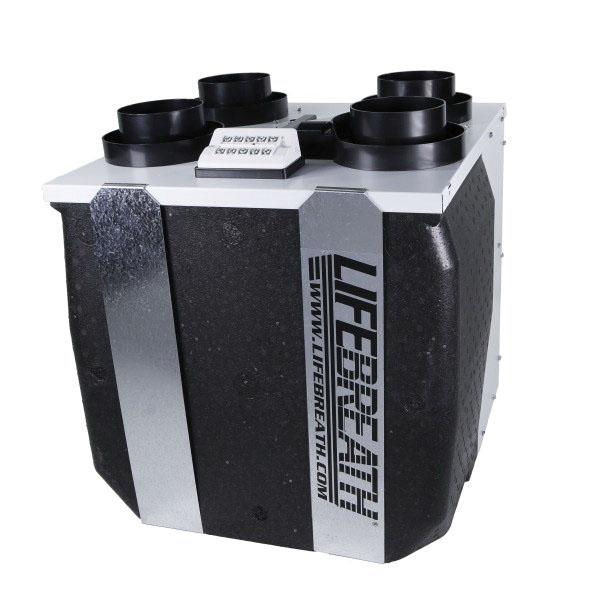

Lifebreath residential and commercial energy recovery ventilators (ERVs) are the best choice for ventilating your home or workplace. These units are designed to provide fresh air into the building while exhausting an equal amount of stale air to the outside. Energy including moisture is transfered between the airsteams reducing the loadson the heating and cooling equipment while delivering the air comfortably and quietly into the space.
Lifebreath® Energy Recovery Ventilator, Series: ERV, 32 - 64 cu-ft/min at 0.3 in WG Air Flow, 0.48 A, 120 VAC, 60 Hz, 44 W Low Speed, 57 W High Speed, 1000 sq-ft Coverage Area, 78% at 55 cu-ft/min and 32 deg F Effectiveness, Steel, Pre-Painted Galvanized
- A top port design, door port balancing, 4 in duct connections and our high efficiency HEX core
- The cross-flow energy recovery core transfers heat and water vapor between the two airstreams, it is easily removed for cleaning or service
- Each airstream has an independent motorized impeller with multiple fan speed operations
- Washable pre-filters in exhaust and supply airstreams
- Hanging straps supplied with the unit
- Temperature sensor activated, periodically shuts down supply motor, drains not required
- 20 ga pre-painted galvanized steel for superior corrosion-resistance, insulated to prevent exterior condensation
- The main control can be wall-mounted in a central location
- BC01 control included
- 77/46 winter/summer effectiveness
