| Amperage Rating | : | 0.8 A |
| BTU Rating | : | 800 Btu/hr |
| CFM Rating | : | 130 cfm |
| Connection Size | : | 1/2 in |
| Dimensions | : | 6-7/8 in H x 12-1/2 in W x 8-1/4 in D |
| Finish | : | Textured |
| Frequency Rating | : | 60 Hz |
| Material | : | Aluminum |
| Model | : | VA |
| Motor Type | : | Shaded Pole |
| Number of Fans | : | 1 |
| Phase | : | 1 ph |
| Temperature Rating | : | 10 deg F |
| Voltage Rating | : | 115 V |
Heatcraft™ V-Profile Unit Coolers are designed for use in small reach-in, back bar and under counter refrigerators and many other applications where a small, compact unit is required. The thermal expansion valve mounts inside the unit. The unit can be mounted from the ceiling or off the back wall or end walls.

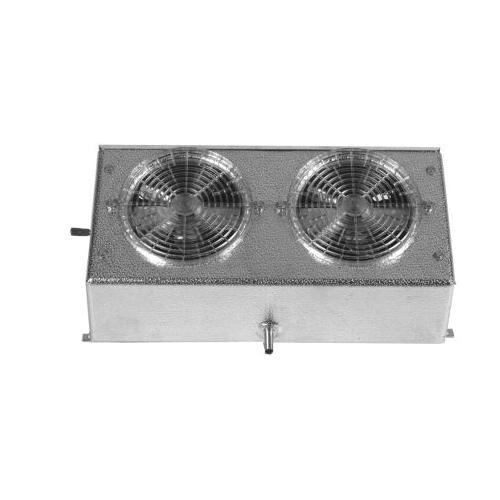

Larkin V-Profile Air Defrost Reach-In Unit Cooler, Model: VA, 115 V, 0.8 A, 60 Hz, 1 ph, 800 Btu/hr, 130 cfm CFM Rating, 1/2 in, 1 Number of Fans, Shaded Pole Motor, Aluminum, Textured, 10 deg F, 6-7/8 in H x 12-1/2 in W x 8-1/4 in D
- Molded polycarbonate fan guard
- Improved drain pan overlaps coil surface to catch all condensate
- Stainless steel screws prevent rust streaks
- Plate-type aluminum fins with full collars on expanded copper tubes
- Expansion valve can be mounted inside the cabinet
- Internal junction box for electrical connection
- Pigtail leads in junction box
- Motors are thermally protected and permanently lubricated
- Top quality throughout in a compact size
