| BTU Rating | : | 1000 Btu/hr |
| CFM Rating | : | 120 cfm |
| Coil Type | : | Standard |
| Connection Size | : | 3/8 in, 1/2 in |
| Connection Type | : | OD |
| Dimensions | : | 4-1/2 in H x 16-1/2 in W x 13-1/2 in D |
| Finish | : | Textured |
| Frequency Rating | : | 60 Hz |
| Material | : | Aluminum |
| Model | : | TA10 |
| Number of Fans | : | 1 |
| Phase | : | 1 ph |
| Series | : | TA Series |
| Voltage Rating | : | 115 V |

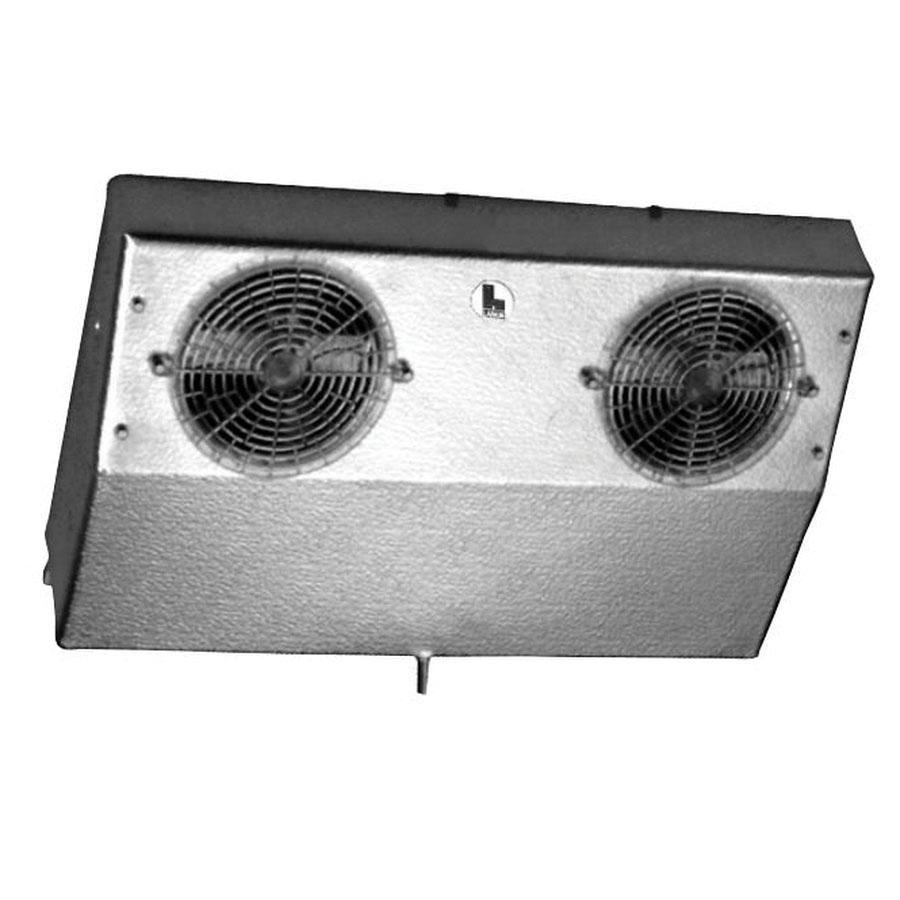

Larkin Reach-In Unit Cooler, Series: TA Series, Model: TA10, 115 V, 60 Hz, 1 ph, 1000 Btu/hr, 120 cfm CFM Rating, OD, 3/8 in, 1/2 in, Standard Coil, 1 Number of Fans, Aluminum, Textured, 4-1/2 in H x 16-1/2 in W x 13-1/2 in D
- Model TA is a thin profile air defrost unit which mounts in the top of a refrigerator and makes the entire top shelf area usable
- The attractive low silhouette makes the unit particularly desirable for display-type refrigerators
- Wherever space is at a premium and is ideal for 35 - 45 deg F fixtures at 10 - 15 deg TD applications with 16 hr maximum compressor run time per day
- Molded polycarbonate guards and fans
- Drain fitting mounted at 45 deg angle so drain can be run through back or bottom of refrigerator
- Expansion valve can be mounted inside the cabinet
- Stainless steel screws, motors are thermally protected and permanently lubricated
- Convenient, moisture-proof motor plug
- Compact design achieves a big job in a small space
- Internal junction box is provided for electrical connection
- Sweat inlet connection standard to reduce leaks
- Vintage
- 0.8 A full load motor
