| Amperage Rating | : | 1.6 A |
| BTU Rating | : | 1700 Btu/hr |
| CFM Rating | : | 170 cfm |
| Coil Type | : | Coated |
| Connection Size | : | 3/8 in, 5/8 in |
| Connection Type | : | OD |
| Dimensions | : | 19-3/4 in H x 15-5/8 in W x 5-5/8 in D |
| Finish | : | Textured |
| Frequency Rating | : | 60 Hz |
| Material | : | Aluminum |
| Model | : | RAMK17 |
| Number of Fans | : | 2 |
| Phase | : | 1 ph |
| Series | : | RAMK Series |
| Voltage Rating | : | 115 V |

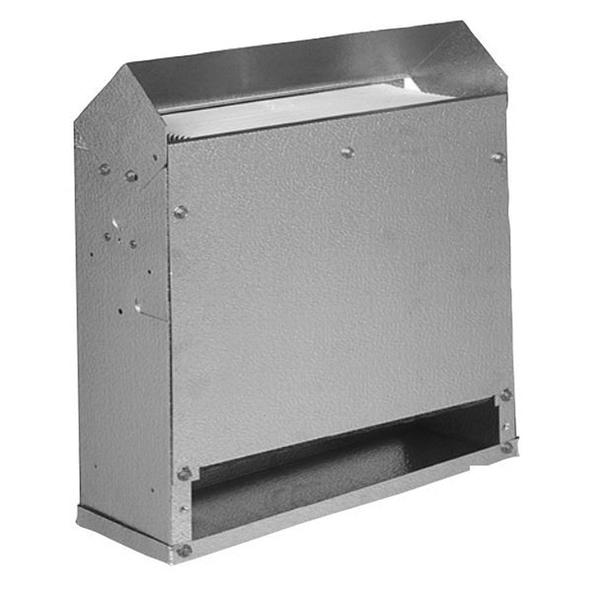

Model RAMK is ideal for use in under-counter reach-in refrigeration. The thin-line design allows the unit to be mounted behind a mullion with sufficient clearance for the installation of tray slides. RAMK or Reverse Air Mullion draws air through the coil at the bottom and discharges the cooled air out the top. This arrangement allows the coldest air to be in contact with drop-in trays. The versatile design of the compact mullion is also adaptable for mounting on the back wall or ends of a beverage cooler. The finned coil of RAMK is protected by special coating as standard. Also features sweat inlet connection to reduce leaks.
Larkin Reach-In Unit Cooler, Series: RAMK Series, Model: RAMK17, 115 V, 1.6 A, 60 Hz, 1 ph, 1700 Btu/hr, 170 cfm CFM Rating, OD, 3/8 in, 5/8 in, Coated Coil, 2 Number of Fans, Aluminum, Textured, 19-3/4 in H x 15-5/8 in W x 5-5/8 in D
- PVC-coated fan guard
- Stainless steel hardware
- Coils have full collar aluminum fins on expanded copper tubes
- Coated coil for enhanced protection in corrosive environments
- Refrigerant connection knockouts provided on both ends of unit
- Expansion valve can be mounted inside the cabinet
- Motors are thermally protected and permanently lubricated
- Internal junction box is provided for electrical connection
- Adjustable air deflector included provides different air patterns, air can be directed where it's needed
- Sweat inlet connection standard to reduce leaks
- Vintage
