| Amperage Rating | : | 1 A |
| BTU Rating | : | 1700 Btu/hr |
| CFM Rating | : | 250 cfm |
| Connection Size | : | 1/2 in |
| Dimensions | : | 8-7/8 in H x 17-1/4 in W x 13-3/4 in D |
| Finish | : | Textured |
| Frequency Rating | : | 60 Hz |
| Material | : | Aluminum |
| Model | : | C |
| Motor Type | : | Shaded Pole |
| Number of Fans | : | 1 |
| Phase | : | 1 ph |
| Temperature Rating | : | 10 deg F |
| Voltage Rating | : | 115 V |

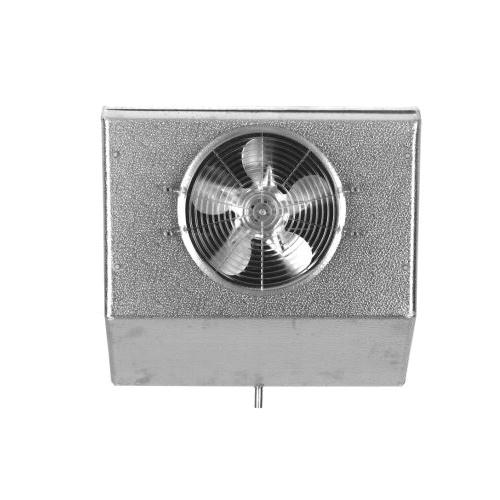

Heatcraft™ C-Profile Unit Coolers mount to the top of the refrigerator and discharge cold air against the back wall. With this air flow pattern, the air is diffused along the back wall and then gently drawn across the product as it returns to the unit. In addition, door sweating and refrigeration loss due to door opening is greatly reduced because the air is not discharged against the doors.
Larkin High-Profile Air Defrost Reach-In Unit Cooler, Model: C, 115 V, 1 A, 60 Hz, 1 ph, 1700 Btu/hr, 250 cfm CFM Rating, 1/2 in, 1 Number of Fans, Shaded Pole Motor, Aluminum, Textured, 10 deg F, 8-7/8 in H x 17-1/4 in W x 13-3/4 in D
- Molded polycarbonate guard
- Drain fitting at 45 deg angle so drain can be run through bottom or back of refrigerator
- Aluminum hangers automatically space the unit to the correct distance from the back wall
- Stainless steel screws prevent rust streaks
- Room for expansion valve inside the unit
- Knockouts in sides and top plus openings in rear provide maximum flexibility for electrical connection
- Expansion valve can be mounted inside the cabinet
- Full collar aluminum fins on expanded copper tubes
- Internal junction box with pigtail leads for electrical connection
- Motors are thermally protected and permanently lubricated
