| Additional Information | : | Wall-Mounting |
| Body Material | : | Brass |
| Connection Size | : | 1/2-14 x 1/2-14 |
| Connection Type | : | Sweat x Sweat |
| Dimensions | : | 5-7/8 in L x 5-7/8 in W x 3-1/2 in D |
| Flow Rate | : | 5 gpm |
| Number of Ports/Ways | : | 4-Port |
| Pressure Rating | : | 150 psi |
The new Kohler® Rite-Temp® valve system sets new standards for ease of installation, application versatility and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades. The Rite-Temp® valve platform uses the latest pressure-balancing technology to provide anti-scald protection and temperature control for enhanced showering comfort. Once the valve is installed, select your finished trim and finish from Kohler® comprehensive design portfolio. Should you decide to remodel in the future, simply change out your trim for the latest design without the need to change the valve installation.

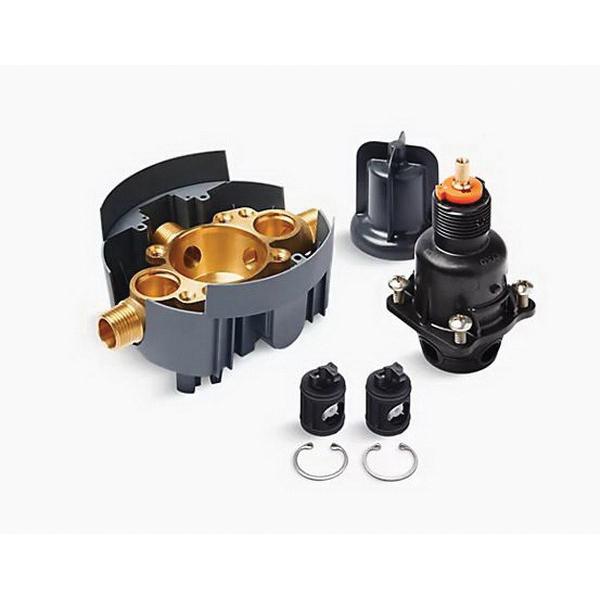

Kohler® Pressure Balance Valve Body and Cartridge Kit, 1/2-14 x 1/2-14 Connection, Sweat x Sweat Connection, Number of Ports/Ways: 4-Port, 150 psi, 5 gpm Flow Rate, Brass Body, 5-7/8 in L x 5-7/8 in W x 3-1/2 in D, Additional Information: Wall-Mounting
- 1/2 in universal NPT and direct sweat inlets and outlets, with stops
- Service stops include integral check valves
- 5 gpm (18.9 Lpm) maximum flow rate at 45 psi
- Single lever design cycles from off through cold to hot
- Provides temperature regulation and automatic anti-scald protection
- One-piece cartridge design simplifies installation and maintenance
- Adjustable high temperature limit stop to control maximum water temperature
- Requires valve trim to complete installation
- Forged de-zincification-resistant brass body provides long term reliability and resistance to aggressive water conditions
- Pressure balancing diaphragm technology maintains outlet temperature within +/- 3 deg F during water pressure fluctuations
- Designed for use in standard, back-to-back and thin wall installations
- Valve body features integral mounting locations and symmetrical valve inlets to simplify installation
- Cartridge is reversible for installations where hot and cold supplies are reversed
- Rough-in guide designed for both standard and thin wall installations
- Installed valve rough-in can be flushed and pressure tested to 150 psi max (air or water) without cartridge using included K-10351 test cap
