| Connection Type | : | SS Internal NPT |
| Dimensions | : | 3-1/4 in H x 4 in W x 2-1/16 in D |
| Material | : | Steel |
| Mounting Type | : | Universal-Mounting Bracket |
| Nominal Size | : | 1/4 in |
| Phase | : | 1 |
| Pressure Rating | : | 50 to 300 lb/sq-in, 20 to 120 lb/sq-in Maximum Differential, 400 lbf/sq-in Maximum Working |
| Series | : | P70 Series |
| Switching Action | : | SPST Open Low |
| Voltage Rating | : | 120-240 VAC |

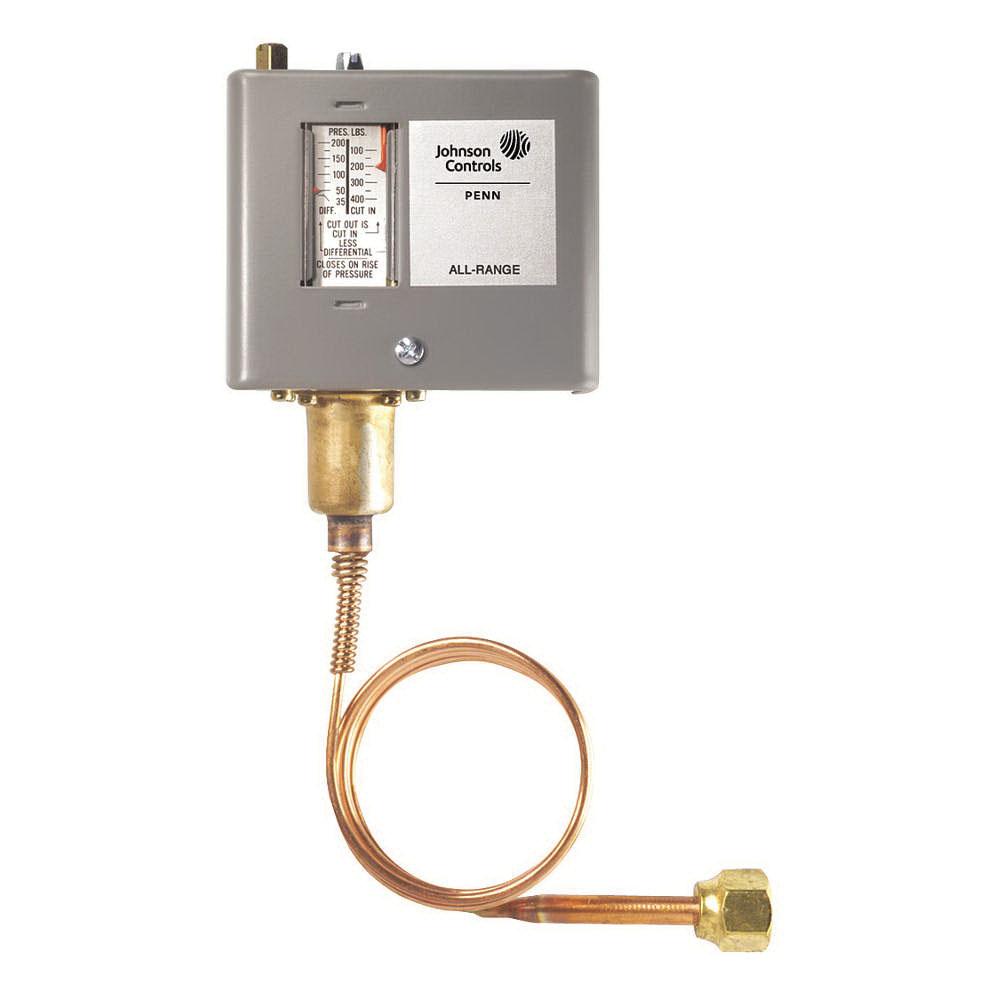

Johnson Controls Penn High Pressure Controller, P70 Series, 120-240 VAC, 1 Phase, 1/4 in Nominal, SS Internal NPT Connection, SPST Open Low Switching Action, 50 to 300 lb/sq-in, 20 to 120 lb/sq-in Maximum Differential, 400 lbf/sq-in Maximum Working, Universal-Mounting Bracket Mounting, Steel, 3-1/4 in H x 4 in W x 2-1/16 in D
- All-steel case and cover provides long-lasting, rugged protection for internal components
- Sight-set calibrated pressure adjustment - displays a visible pressure scale, fully adjustable through the range without removing the cover
- NEMA 1 enclosure
- Ammonia compatible
