Johnson Controls PENA350RS1

Johnson Controls A350RS-1C Temperature Reset Control, 20 - 30 VAC, Configuration: SPDT, Blue

Manufacturer: Johnson Controls
Part #: PENA350RS1
Customer Part #:
Login for Availability
Login for Price
Color      :      Blue
Configuration      :      SPDT
Contact Rating      :      4 A Non Inductive at 24 VAC, 42.4 V-A Pilot Duty at 24 VAC (Relay)
Differential Temperature      :      1 - 30 deg F
Enclosure Type      :      NEMA 1
Frequency Rating      :      50/60 Hz
Height      :      5 in
Length      :      2-1/2 in
Material      :      High Impact Thermoplastic Case and Cover
Sensor Type      :      A99
Series      :      A350R
Switching Action      :      Open/Close on Rise
Temperature Rating      :      -30 to 150 deg F Operating
Temperature Settings      :      40 - 70 deg F Reset, 50 - 160 deg F Minimum Supply, 160 - 220 deg F Maximum Supply, 0 - 30 deg F Setback
Voltage Rating      :      20 - 30 VAC
Width      :      2-1/2 in

Johnson Controls Penn Temperature Reset Control, Series: A350R, 20 - 30 VAC, A99 Sensor, Configuration: SPDT, Switching Action: Open/Close on Rise, 50/60 Hz, 4 A Non Inductive at 24 VAC, 42.4 V-A Pilot Duty at 24 VAC (Relay) Contact, 1 - 30 deg F Differential, Temperature Settings: 40 - 70 deg F Reset, 50 - 160 deg F Minimum Supply, 160 - 220 deg F Maximum Supply, 0 - 30 deg F Setback, High Impact Thermoplastic Case and Cover, Blue, 2-1/2 in L, 5 in H, 2-1/2 in W, NEMA 1 Enclosure, -30 to 150 deg F Operating

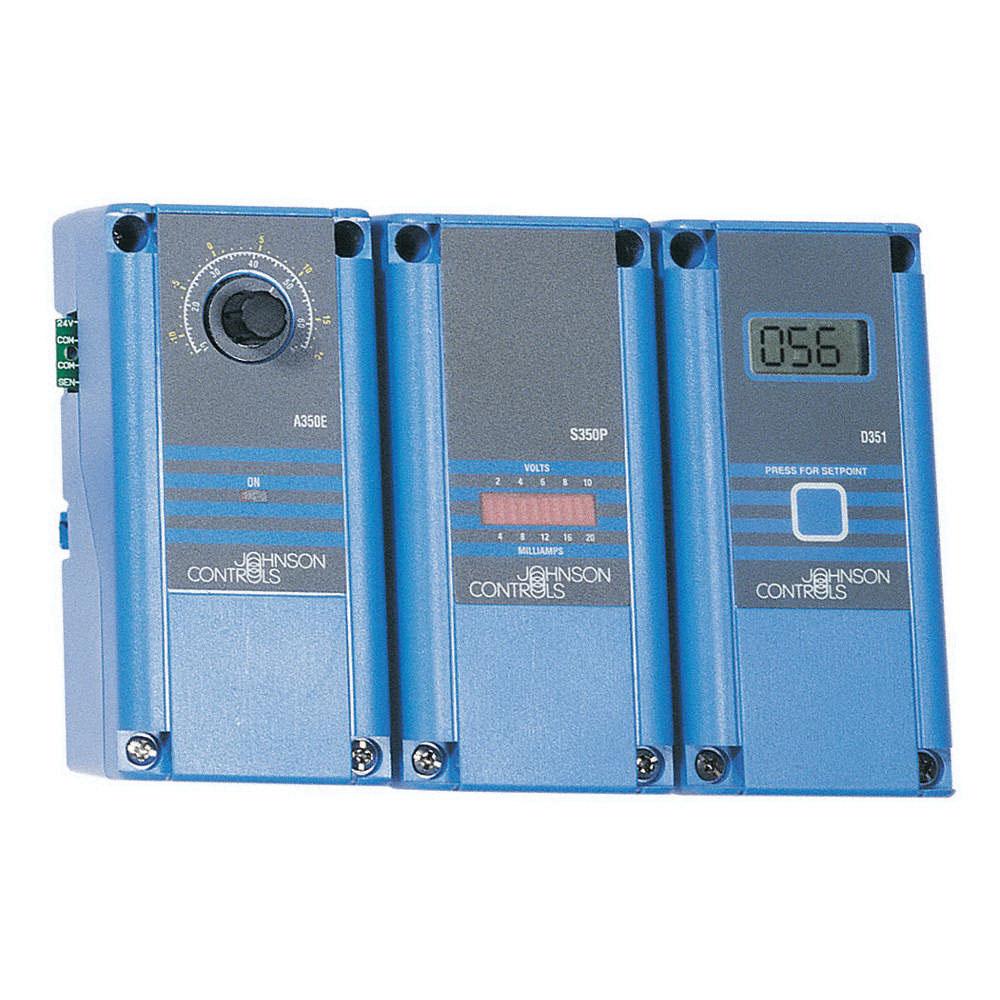

  • Modular design enables stage, display and transformer modules to be purchased and installed as necessary
  • Adjustable master reset set point (M.R.S.) enables the user to select a master (outdoor) sensor temperature starting point for the supply reset ramp
  • Adjustable minimum and maximum supply temperature permits compliance with equipment manufacturer's specifications
  • Selectable warm weather shutdown temperature saves energy by disabling equipment when the master sensor temperature rises to a point where heating is no longer required
  • Adjustable setback temperature saves energy by lowering the supply temperature set point at night or during unoccupied periods
  • 3.2 V-A power consumption
  • Reverse acting
  • Includes A99BB-300C and A99BC-25C sensors
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Johnson_Controls_A350RS_1C_Catalog.pdf
