| Color | : | Blue |
| Configuration | : | SPDT |
| Contact Rating | : | 1/2 hp, 9.8 A Full Load, 58.8 A Locked Rotor at 120 VAC, 1/2 hp, 4.9 A Full Load, 29.4 A Locked Rotor at 208/240 VAC, 10 A Non Inductive at 24 - 240 VAC, 125 V-A at 24 - 240 VAC |
| Differential Temperature | : | 1 - 30 deg F |
| Height | : | 5 in |
| Length | : | 2-1/2 in |
| Material | : | High Impact Thermoplastic |
| Sensor Type | : | A99 |
| Series | : | A350 |
| Switching Action | : | Open/Close on Rise |
| Temperature Settings | : | -30 to 212 deg F |
| Voltage Rating | : | 20 - 30 VAC |
| Width | : | 2-1/2 in |

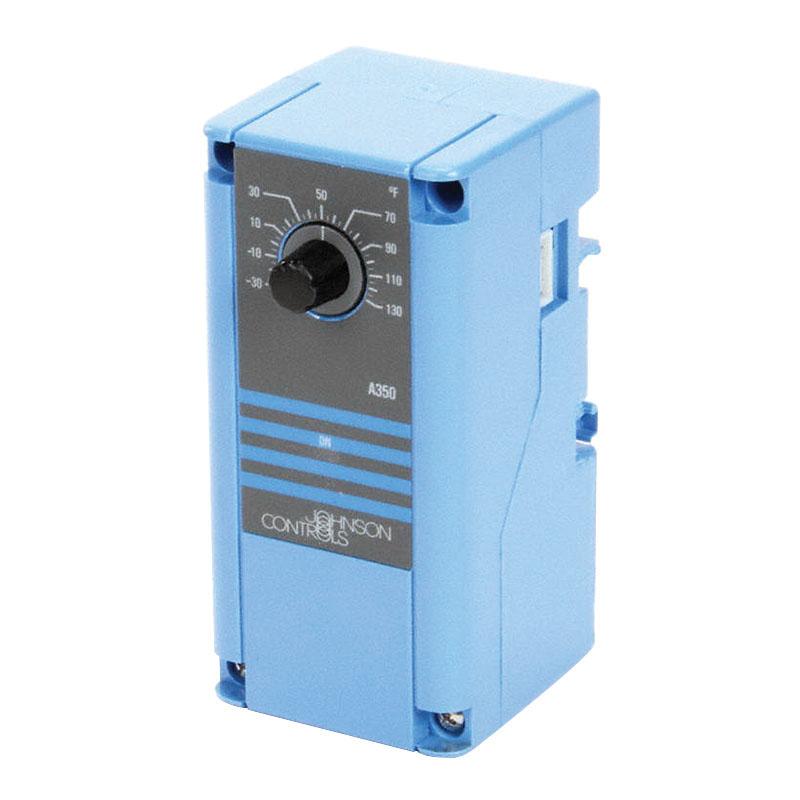

Johnson Controls Penn Temperature Control, Series: A350, 20 - 30 VAC, A99 Sensor, Configuration: SPDT, Switching Action: Open/Close on Rise, 1/2 hp, 9.8 A Full Load, 58.8 A Locked Rotor at 120 VAC, 1/2 hp, 4.9 A Full Load, 29.4 A Locked Rotor at 208/240 VAC, 10 A Non Inductive at 24 - 240 VAC, 125 V-A at 24 - 240 VAC Contact, 1 - 30 deg F Differential, Temperature Settings: -30 to 212 deg F, High Impact Thermoplastic, Blue, 2-1/2 in L, 5 in H, 2-1/2 in W
- Remote sensing capability up to 800 ft
- Used in conjunction with the A99B temperature sensors
- 1 relay input/output
- Provides on/off and proportional temperature, humidity and pressure control and temperature reset
- 1.4 W power consumption
- NEMA 1 high-impact thermoplastic
