| Capillary Length | : | 10 ft |
| Configuration | : | SPST |
| Contact Rating | : | 16 A Full Load and 96 A Locked Rotor at 120 VAC, 9.2 A Full Load and 55.2 A Locked Rotor at 208 VAC, 8 A Full Load and 48 A Locked Rotor at 240 VAC, 16 A Non-Inductive at 120 - 277 VAC, 125 V-A at 24 - 600 VAC Pilot Duty |
| Enclosure Type | : | NEMA 1 |
| Series | : | A19 |
| Switching Action | : | Open Low |
| Temperature Settings | : | -30 to 100 deg F |
| Voltage Rating | : | 120/208/240 VAC |

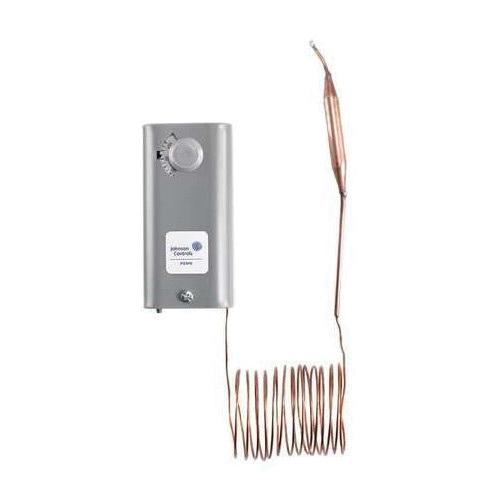

Johnson Controls Penn Temperature Control, Series: A19, 120/208/240 VAC, Configuration: SPST, Switching Action: Open Low, 10 ft Capillary Length, 16 A Full Load and 96 A Locked Rotor at 120 VAC, 9.2 A Full Load and 55.2 A Locked Rotor at 208 VAC, 8 A Full Load and 48 A Locked Rotor at 240 VAC, 16 A Non-Inductive at 120 - 277 VAC, 125 V-A at 24 - 600 VAC Pilot Duty Contact, Temperature Settings: -30 to 100 deg F, NEMA 1 Enclosure
- The A19 Series controls are single-stage temperature controls that incorporate environmentally friendly liquid-filled sensing elements
- Constant differential throughout the entire range
- Compact enclosure
- Unaffected by cross ambient conditions
- WEL14A-602R bulb well
- Manual reset differential
- 140 deg F maximum bulb temperature
