| Capillary Length | : | 6 ft |
| Configuration | : | SPST |
| Contact Rating | : | Full Load: 6 A at 120 VAC, 3.4 A at 208 VAC, 3 A at 240 VAC, Locked Rotor: 36 A at 120 VAC, 20.4 A at 208 VAC, 18 A at 240 VAC, Non-Inductive: 22 A at 24 - 277 VAC, Pilot Duty: 125 V-A at 24 - 277 VAC |
| Differential Temperature | : | 2.5 deg F |
| Frequency Rating | : | 50/60 Hz |
| Series | : | A19 |
| Stages | : | 1 |
| Temperature Settings | : | 30 - 50 deg F |
| Voltage Rating | : | 120/208/240 VAC |

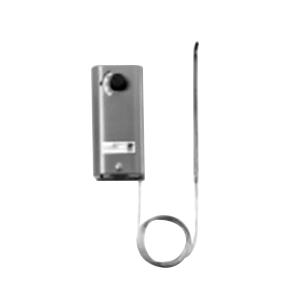

Johnson Controls Penn Temperature Control, Series: A19, 120/208/240 VAC, Configuration: SPST, 1 Stages, 6 ft Capillary Length, 50/60 Hz, Full Load: 6 A at 120 VAC, 3.4 A at 208 VAC, 3 A at 240 VAC, Locked Rotor: 36 A at 120 VAC, 20.4 A at 208 VAC, 18 A at 240 VAC, Non-Inductive: 22 A at 24 - 277 VAC, Pilot Duty: 125 V-A at 24 - 277 VAC Contact, 2.5 deg F Differential, Temperature Settings: 30 - 50 deg F
- The A19 Series controls are single-stage temperature controls that incorporate environmentally friendly liquid-filled sensing elements
- Constant differential throughout the entire range
- Compact enclosure
- Unaffected by cross ambient conditions
- WEL16A-601R bulb well
- Fixed differential (close)
- 190 deg F maximum bulb temperature
- Screwdriver slot adjuster
