| AFUE Rating | : | 80 % |
| Additional Information | : | No Evaporator Coil Cabinet, R410A and A2L(454B) Indoor Coil Compatible |
| Amperage Rating | : | 8.4 A |
| Cabinet Dimensions | : | 20 in L x 23-3/4 in W x 56 in H |
| Configuration | : | Front Return Downflow |
| Connection Size | : | 1/2 in |
| Connection Type | : | NFPT |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| HP Rating | : | 3/4 hp |
| Input BTU Rating | : | 77000 Btu/hr |
| Motor Type | : | ECM |
| Mounting Type | : | Surface |
| Number of Stages | : | 1 |
| Output BTU Rating | : | 62000 Btu/hr |
| Phase | : | 1 ph |
| Pressure Rating | : | 0.3 in-WC |
| Series | : | MG1E Series |
| Temperature Rise | : | 45 to 75 deg F |
| Vent, Ducted or Ductless | : | Vent |
| Voltage Rating | : | 120 V |

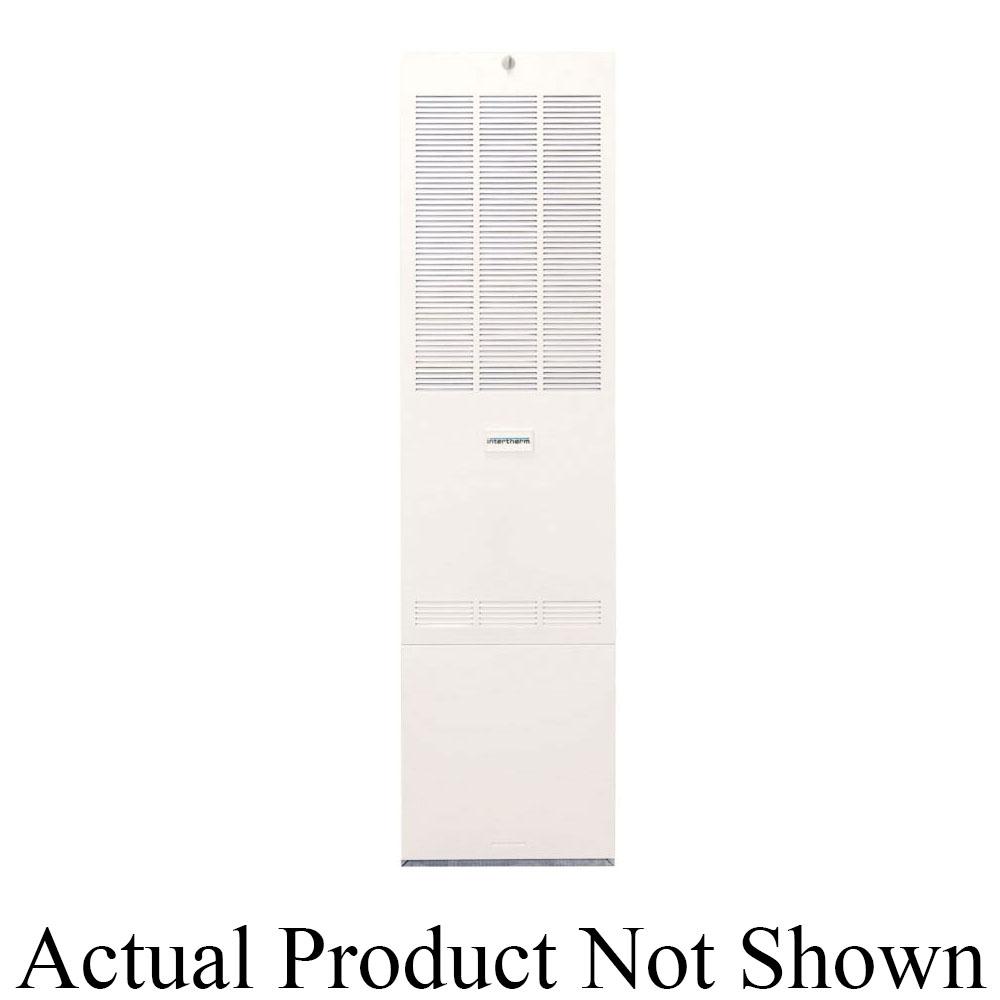

The MG1 Series furnace is designed for all sizes of manufactured and modular homes. These units incorporate high efficiency, reliability, and low maintenance. Units may be installed free standing in a utility room or enclosed in an alcove or closet. MG1 Series furnaces are available in A/C adaptable or A/C ready, with or without coil cavity box and many burner options.
Intertherm® Gas Furnace, MG1E Series, Input BTU Rating: 77000 Btu/hr, Output BTU Rating: 62000 Btu/hr, 120 V, 8.4 A, 3/4 hp, 80 % AFUE Rating, 1 ph Phase, 60 Hz, 1 Stages, Front Return Downflow, NFPT Connection Type, 1/2 in Connection, 20 in L x 23-3/4 in W x 56 in H Cabinet, ECM Motor, Vent, Ducted or Ductless: Vent, 15 A Fuse Rating, 0.3 in-WC, Surface Mounting, 45 to 75 deg F Temperature Rise, Additional Information: No Evaporator Coil Cabinet, R410A and A2L(454B) Indoor Coil Compatible
- Sealed Combustion System - Vents exhaust gas directly outdoors and draws in 100% outside air for the burner.
- Easy Open Pawl Latch - Secures the door firmly for transit, yet allows easy removal for access.
- Choice of Air Conditioning Options - From 2 to 4 tons A/C ready.
- Large, Effective Air Filter - Room air is cleaner with this permanent washable filter.
- High Efficiency Drum Heat Exchanger - Delivers optimum heat transfer with low air resistance.
- Appliance Quality Door - Protects against rust and other corrosion. Baked enamel finish allows for easy cleaning.
- Fully Insulated Cabinet - Insures minimized heat loss and quiet operation.
- Reliable Burner - With uniform flame pattern extends life of heat exchanger.
