| Amperage Rating | : | 40 A |
| Contact Configuration | : | DPST |
| Dimensions | : | 200 mm H x 130.2 mm W x 87.3 mm D |
| Enclosure Type | : | NEMA 1 |
| Frequency Rating | : | 60 Hz |
| Material | : | Steel |
| Pilot Duty Rating | : | 1000 VA |
| Power Rating | : | 2 hp, 3W, 5 hp |
| Series | : | T100 Series |
| Switch Rating | : | 16 A at 277 VAC Ballast, 40 A Resistive at 120 to 480 VAC, 40 A Tungsten |
| Temperature Rating | : | -40 to 130 deg F |
| Timing Range | : | 24 hr |
| Voltage Rating | : | 120 VAC |
| Wire Size | : | 14 to 8 AWG |

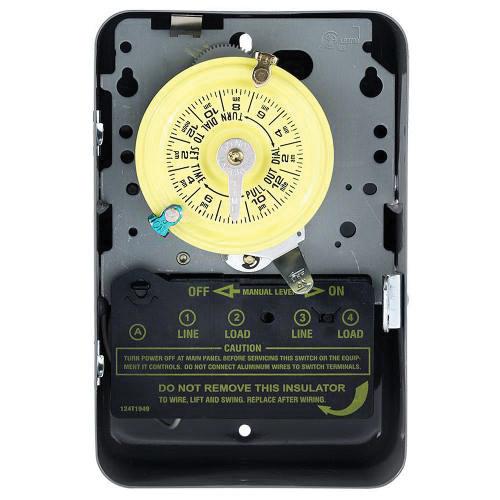

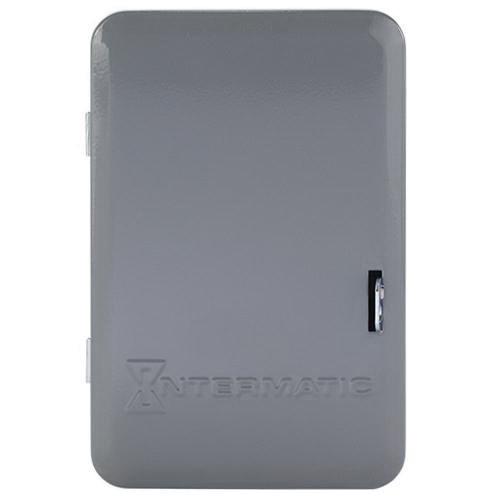

Intermatic® Time Switch, Series: T100 Series, 120 VAC, 40 A, 60 Hz, 2 hp, 3W, 5 hp, DPST, 24 hr, Switch Rating: 16 A at 277 VAC Ballast, 40 A Resistive at 120 to 480 VAC, 40 A Tungsten, Pilot Duty: 1000 VA, 14 to 8 AWG Wire, NEMA 1, Steel, -40 to 130 deg F, 200 mm H x 130.2 mm W x 87.3 mm D
- It can stand the test of time
- These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 on/off operations per day
- A manual override switch provides added convenience
- One on and one off tripper included
- 12 maximum on/off operations
- 125 V clock motor
- Combination 1/2 - 3/4 in nominal knockouts, (1) on side and (2) on bottom
- 1 hr minimum on/off times
