| Amperage Rating | : | 40 A |
| Dimensions | : | 10 in H x 6-1/2 in W x 4 in D |
| Enclosure Type Material | : | Plastic |
| Enclosure Type | : | NEMA 3R |
| Frequency Rating | : | 60 Hz |
| Model | : | T101P |
| Number of Poles | : | 1 |
| Power Rating | : | 3 W |
| Series | : | T100 Series |
| Switch Rating | : | 120/480 V, 40 A |
| Temperature Rating | : | -40 to 130 deg F |
| Timing Range | : | 12 hr |
| Voltage Rating | : | 120 VAC |
| Wire Size | : | 14 to 8 AWG |

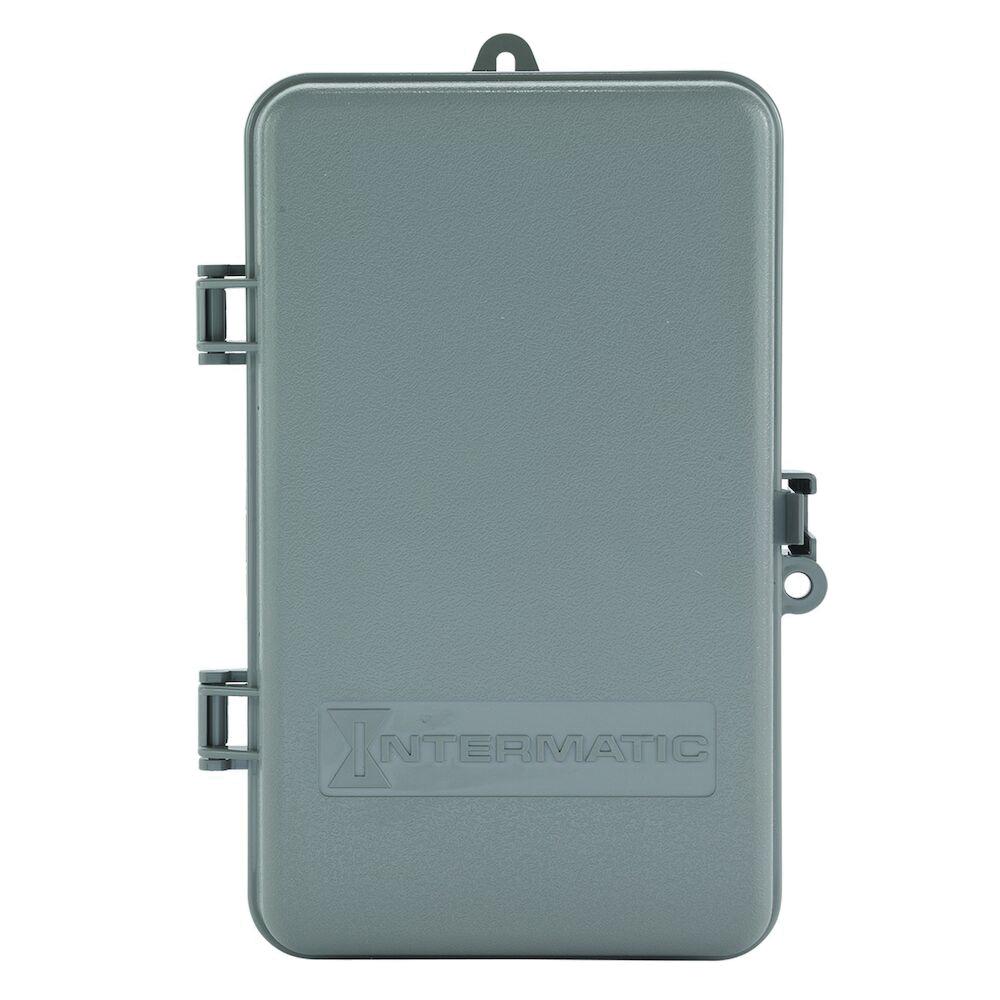

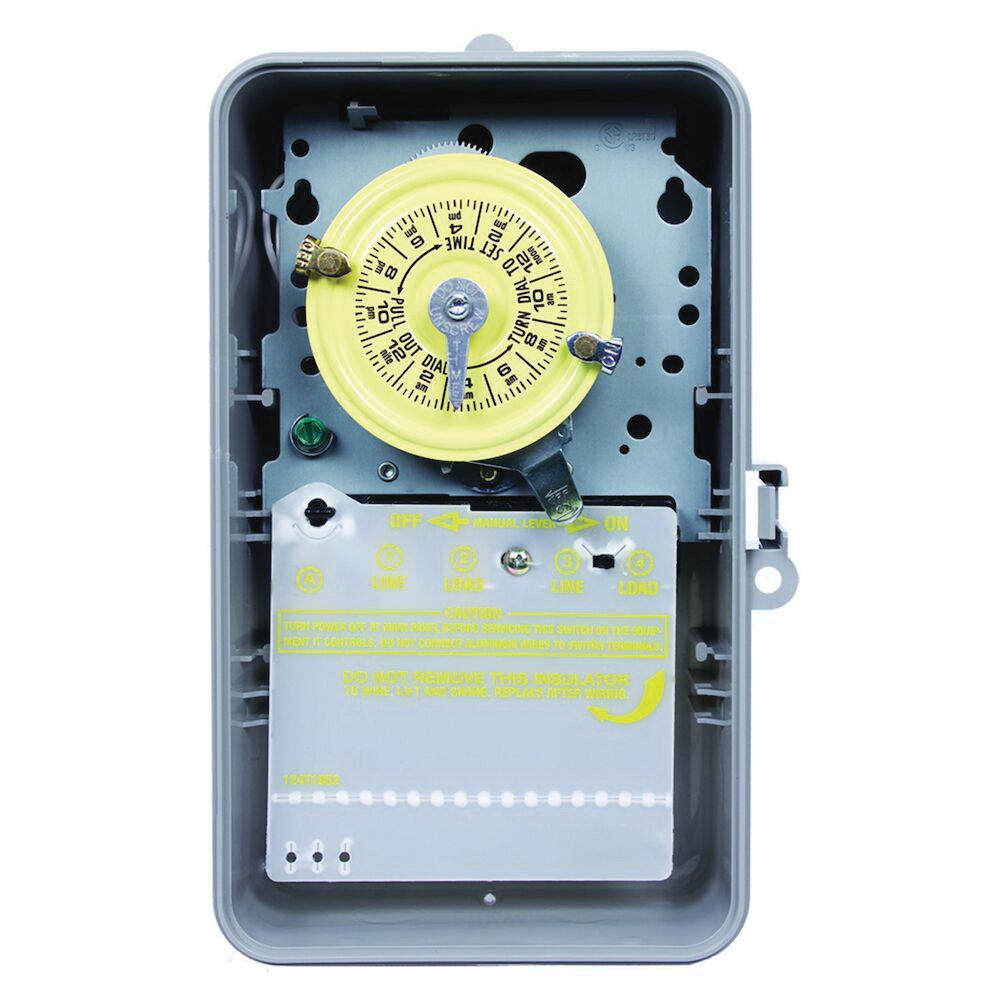

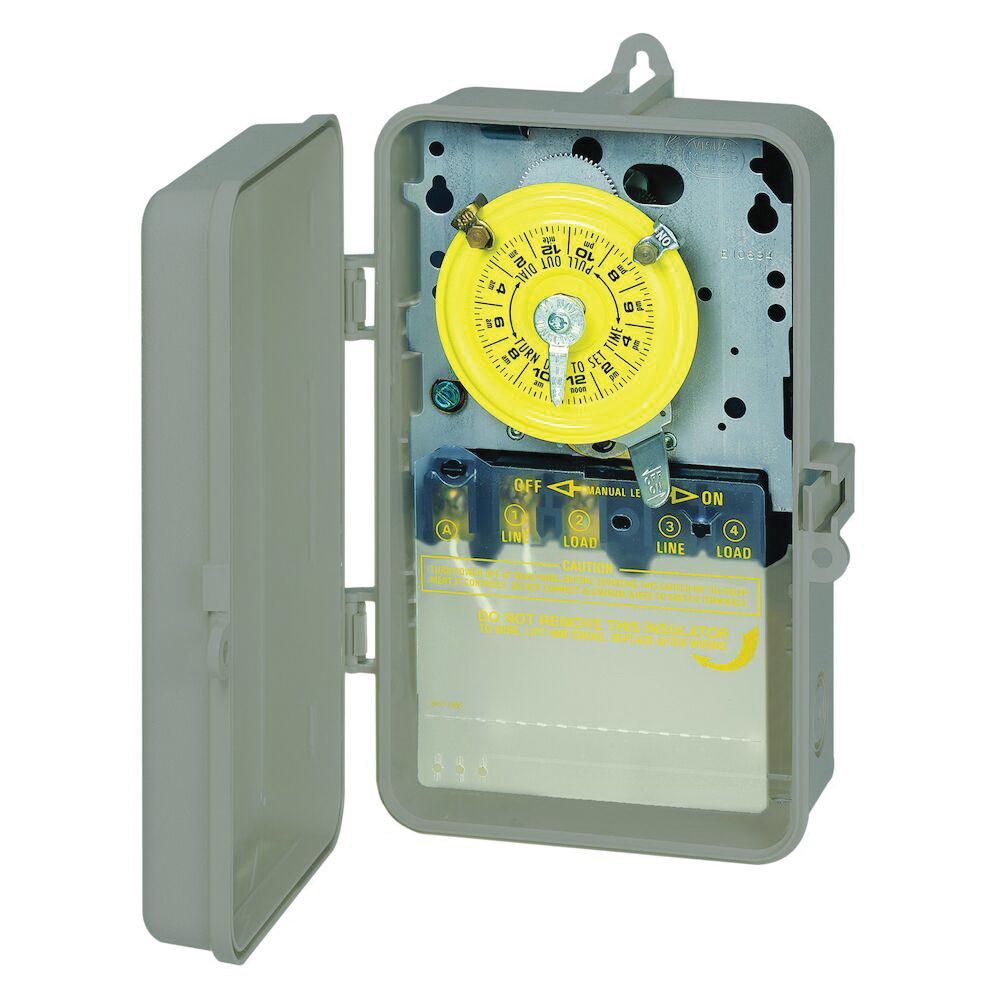

The T100 series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Intermatic® Time Switch, Series: T100 Series, Model: T101P, 120 VAC, 40 A, 60 Hz, 3 W, 1 Pole, 12 hr, Switch Rating: 120/480 V, 40 A, 14 to 8 AWG Wire, NEMA 3R, Plastic Enclosure Type Material, -40 to 130 deg F, 10 in H x 6-1/2 in W x 4 in D
- Direct 24 hrs control of most loads
- Up to 12 on/off operations each day with minimum on/off times of 1 hr
- Manual override
