| Additional Information | : | MIL72 Series, 15 min to 24 hr Cycle Time, SPDT Switch, 0 to 95% Non-Condensing Humidity |
| Amperage Rating | : | 21 A |
| Dimensions | : | 4 in H x 2-53/64 in W x 2-1/16 in D |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1 hp |
| Mounting Type | : | DIN Rail/Surface |
| Operating Temperature | : | -40 to 185 deg F |
| Terminal Connection Type | : | Screw |
| Voltage Rating | : | 120 VAC |

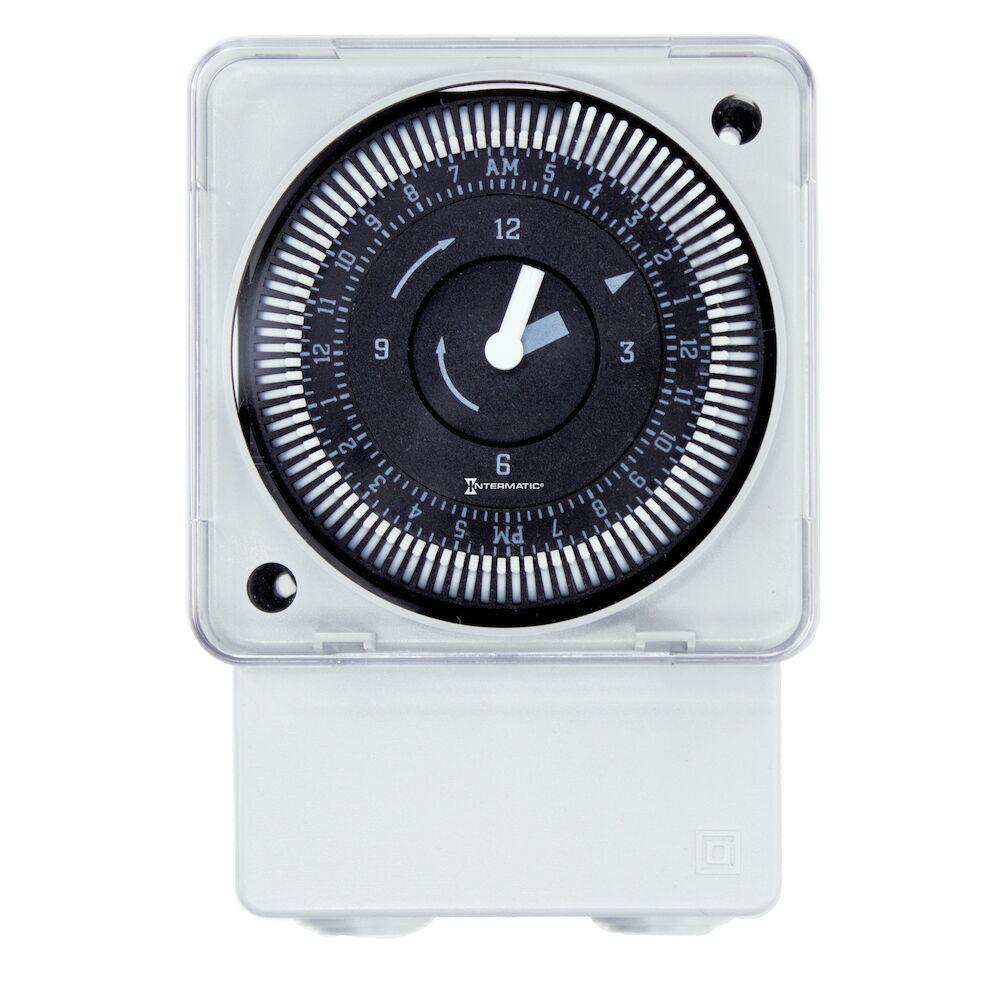

The MIL72 Series time switches are designed to be mounted inside a control panel and can accommodate surface/DIN rail or flush panel mounting.
Intermatic® Electromechanical Timer Module, 120 VAC, 21 A, 60 Hz, 1 hp, Screw Terminal Connection, -40 to 185 deg F Operating, DIN Rail/Surface Mount, 4 in H x 2-53/64 in W x 2-1/16 in D, MIL72 Series, 15 min to 24 hr Cycle Time, SPDT Switch, 0 to 95% Non-Condensing Humidity
- 21 A SPDT switch
- Synchronous drive or quartz drive (Q Models) with self-recharging battery backup
- 72 hr carry-over battery backup on Q models
- Captive trippers with 15 min intervals
- True clock face, easy-to-set
- Surface/DIN rail or flush mount
- Compact size
- Clear plastic dust cover
