| Ballast Load | : | 1000 VA, 8.3 A |
| Color | : | Gray |
| Dimensions | : | 1-13/16 in H x 15/16 in W x 13/16 in D |
| Foot Candle Off | : | 3 to 15 fc |
| Foot Candle On | : | 1 to 5 fc |
| Frequency Rating | : | 50/60 Hz |
| Housing Material | : | Polycarbonate |
| Sensor Type | : | Thermal |
| Suitable For Use With | : | Fluorescent, HID and Incandescent Fixtures |
| Switch Type | : | Mechanical |
| Temperature Rating | : | -40 to 158 deg F |
| Time Delay | : | 30 to 90 s |
| Tungsten Rating | : | 15 A, 1800 W |
| Voltage Rating | : | 120 VAC |
| Wire Size | : | 18 AWG |
These photocontrols install within lighting fixtures, post lamps or in wall boxes to provide dusk-to-dawn on/off control of outdoor lighting.

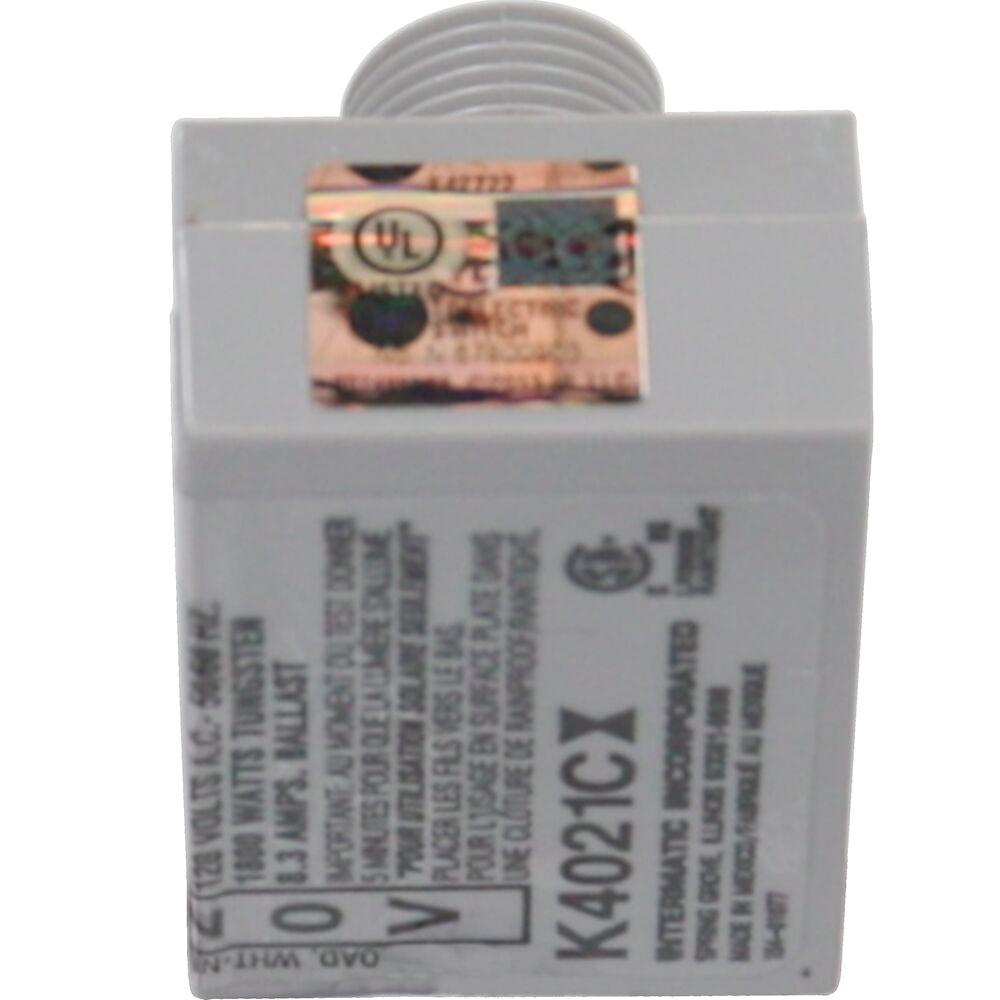

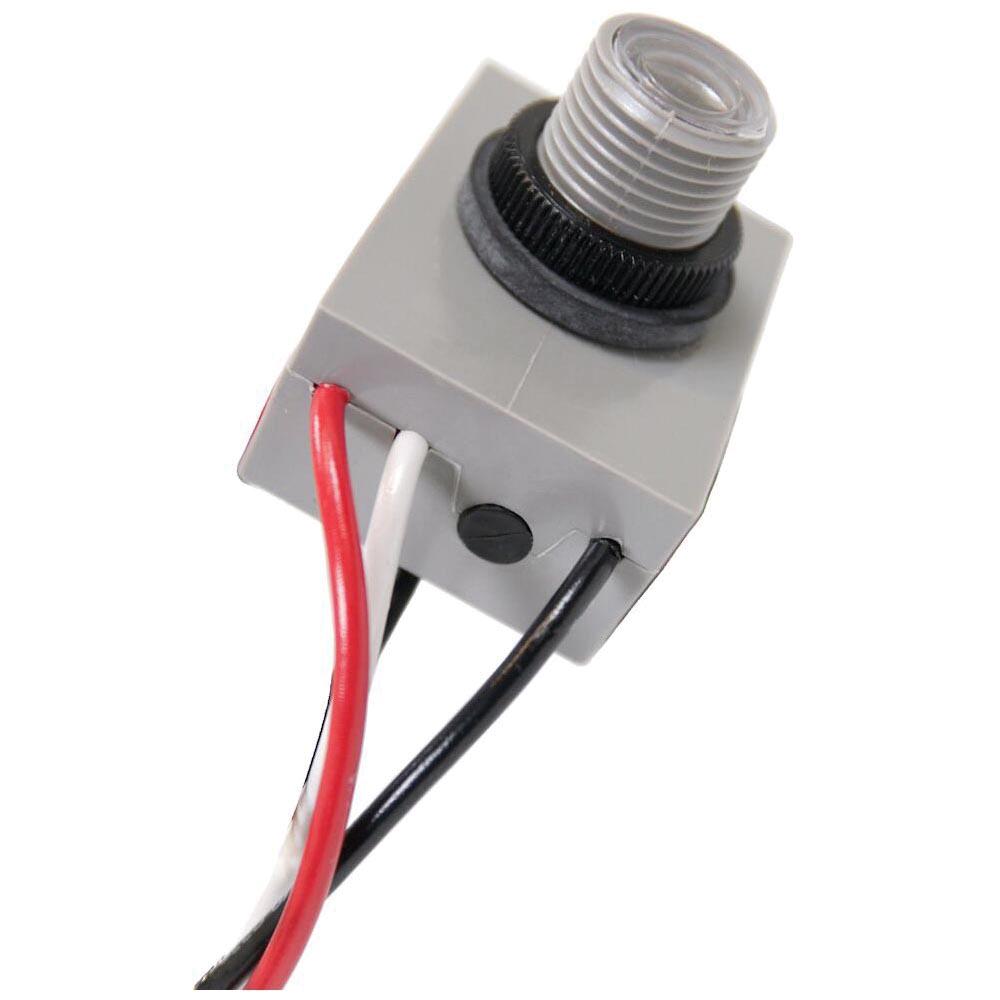

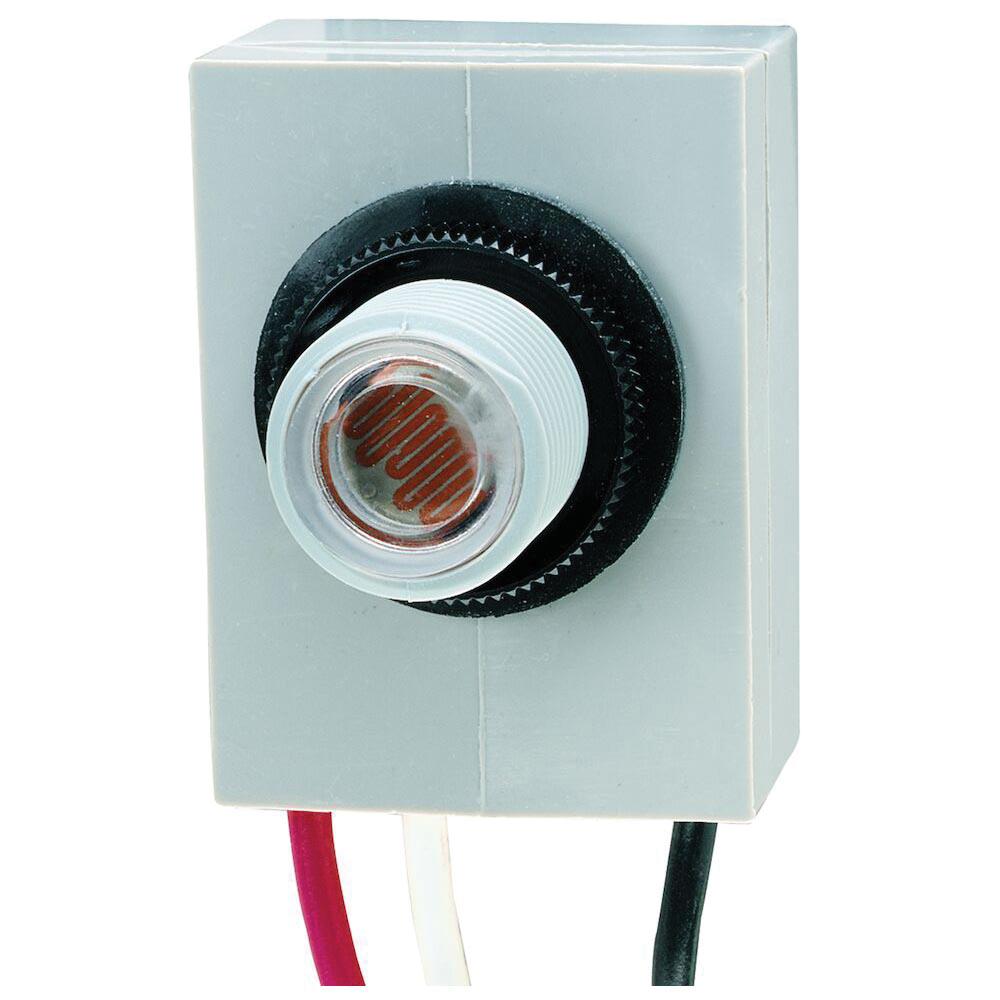

Intermatic® Photocontrol, 120 VAC, 15 A, 1800 W Tungsten, 1000 VA, 8.3 A Ballast, 50/60 Hz, Thermal Sensor, Mechanical Switch, 1 to 5 fc Foot Candle On, 3 to 15 fc Foot Candle Off, 30 to 90 s Delay, 18 AWG Wire, -40 to 158 deg F, Polycarbonate Housing, Gray, 1-13/16 in H x 15/16 in W x 13/16 in D, For Use With: Fluorescent, HID and Incandescent Fixtures
- Mechanical bi-metal switch with cadmium sulfide photocell
- Compact size fits into standard outlet box, post lamp, wall pack and other lighting fixtures
- Delay feature prevents unwanted off switching
- 3/8-18 NPSM, 3/4 in long stem with locking nut and washer gasket
