| Amperage Rating | : | 15 A |
| Color | : | White |
| Contact Configuration | : | 1NO SPST |
| Depth | : | 36.5 mm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/4 hp |
| Height | : | 104.8 mm |
| Operating Cycles | : | 100000 cycles |
| Series | : | EI200 Series |
| Switch Rating | : | 15 A Heater, 8 A Magnetic, 8.3 A Incandescent |
| Temperature Rating | : | 32 to 122 deg F |
| Terminal Type | : | Lead Wire |
| Time Settings | : | 10 min, 20 min, 30 min, 60 min |
| Voltage Rating | : | 120 VAC |
| Width | : | 42.93 mm |

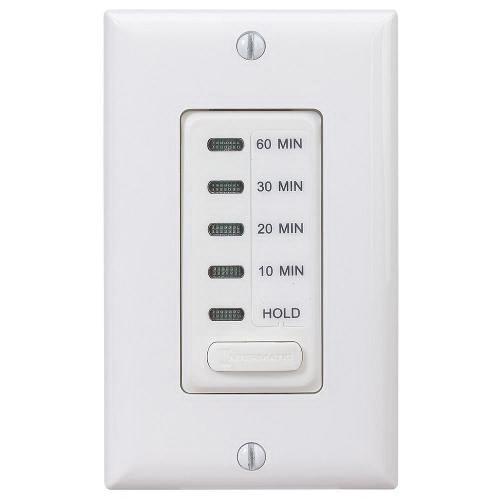

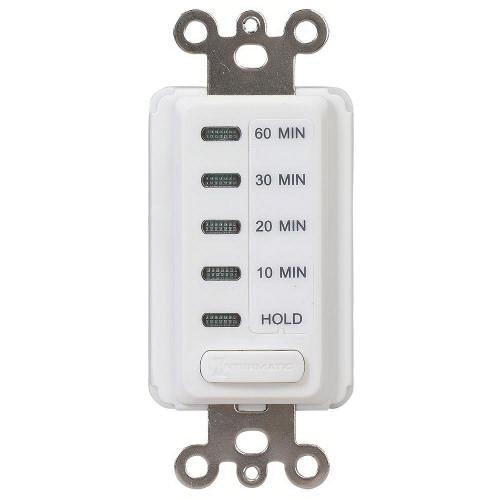

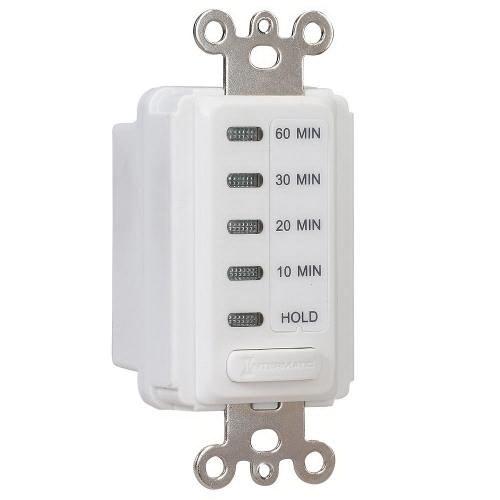

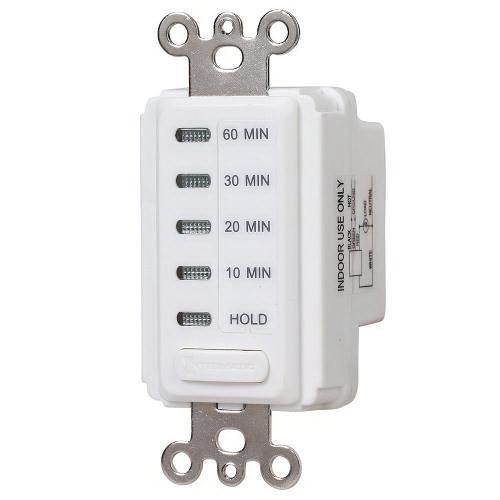

Intermatic® Electronic In-Wall Countdown Timer, Series: EI200 Series, 120 VAC, 15 A, 60 Hz, 1/4 hp HP Rating, Switch Rating: 15 A Heater, 8 A Magnetic, 8.3 A Incandescent, 1NO SPST, 10 min, 20 min, 30 min, 60 min Time Settings, Lead Wire Terminal, 100000 cycles Operating Cycles, 32 to 122 deg F, White, 104.8 mm Height, 42.93 mm Width, 36.5 mm D
- Requires neutral connection
- Single button time selection, with hold mode, for continuous on operation
- Incandescent/fluorescent/CFL/LED compatible
