| Additional Information | : | Fixed Refrigerant Metering Device |
| Compressor Type | : | Scroll |
| Drive Type | : | Direct |
| Filter Size | : | 2 in |
| Frequency Rating | : | 60 Hz |
| Ignition Type | : | Solid-State Electronic Direct Spark |
| Input BTU Rating | : | 60000 Btu/hr |
| Model | : | RGV |
| Number of Stages | : | 1 or 2 |
| Phase | : | 3 ph |
| Refrigerant Type | : | R-410A HFC |
| SEER Rating | : | 14 |
| Temperature Rating | : | 40 to 115 deg F |
| Tonnage | : | 5 ton |
| Voltage Rating | : | 208/230 VAC |

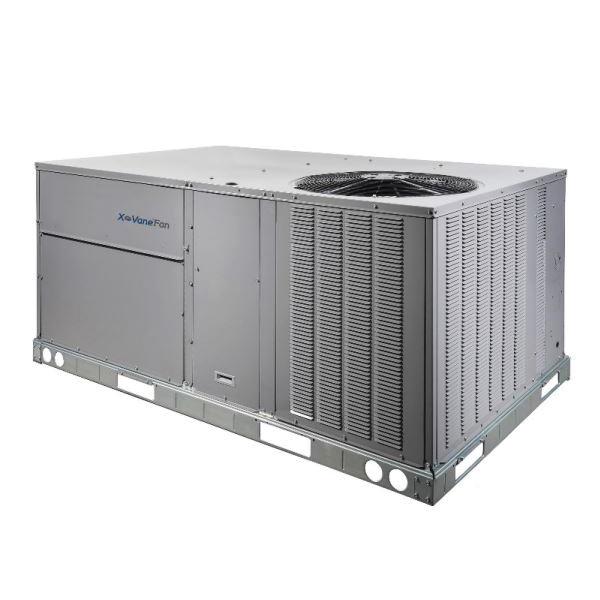

RGV units are single-packaged electric cooling, gas heating units that are pre-wired and pre-charged with R-410A HFC refrigerant. The units are factory tested in both heating and cooling modes. 3 to 5 ton models use single-stage cooling capacity control, 6 ton models use two-stage cooling capacity control.
ICP™ Packaged Rooftop Gas Heating/Electric Cooling Unit, Fixed Refrigerant Metering Device, Model: RGV, 60000 Btu/hr Input BTU Rating, 208/230 VAC, 60 Hz, 3 ph Phase, Scroll Compressor Type, 14 SEER Rating, 5 ton Tonnage, 1 or 2 Stages, R-410A HFC Refrigerant, Solid-State Electronic Direct Spark Ignition, Direct Drive, 2 in Filter, 40 to 115 deg F
- Induced draft combustion
- Redundant gas valve, with one or two-stages of heating
- Pre-painted exterior panels and tested to 500 hr salt spray protection
- Fully insulated cabinet
- Exclusive IGC solid-state control for on-board diagnostics with LED error code designation and burner control logic
- Access panels with easy grip handles and no-strip screw feature
- 2 in disposable return air filters
- Tool-less filter access door
- New unit control board with intuitive quick fan speed adjustment
- Field convertible from vertical to horizontal airflow on all models
- No special kit required, provisions for thru-the-bottom power entry capability
- Single point gas and electric connections
- Full perimeter base rail with built-in rigging adapters and fork truck slots
- Scroll compressors with internal line-break overload protection
- Copper tube, aluminum fin coils
