| Amperage Rating | : | 1 A |
| Bearing Type | : | Sleeve |
| Duty Type | : | Continuous |
| Frame Size | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/5 hp |
| Insulation Class | : | B |
| Motor Enclosure Type | : | Air Over |
| Number of Speeds | : | 2 |
| Phase | : | 1 ph |
| Rotation Type | : | Clockwise Lead End |
| Shaft Design | : | Single Sided Flat |
| Shaft Size | : | 1/2 in Dia x 2 in L |
| Speed Rating | : | 1075 rpm |
| Voltage Rating | : | 208 to 230 VAC |

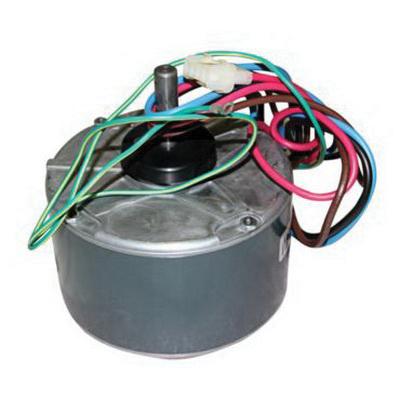

ICP™ Condenser Fan Motor, 208 to 230 VAC, 1 A, 1/5 hp, 1075 rpm, 1 ph Phase, 60 Hz, Air Over Motor Enclosure, 48 Frame, 1/2 in Dia x 2 in L Shaft, Clockwise Lead End Rotation, 2 Speed, Sleeve Bearing, B Insulation Class, Continuous, Single Sided Flat Shaft Design
- Capacitor 3 uF at 370 VAC
- Thermal protected
