| Amperage Rating | : | 0.99 A |
| Bearing Type | : | Sleeve |
| Dimensions | : | 5 in Dia |
| Duty Type | : | Continuous |
| Frame Size | : | 42Y |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/6 hp |
| Insulation Class | : | A |
| Motor Enclosure Type | : | Air Over |
| Mounting Type | : | Belly Band, Through-Bolt |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Rotation Type | : | Clockwise Lead End |
| Shaft Design | : | Single Sided Flat |
| Shaft Size | : | 1/2 in Dia x 1-7/8 in L |
| Speed Rating | : | 1110 rpm |
| Voltage Rating | : | 208 to 230 VAC |

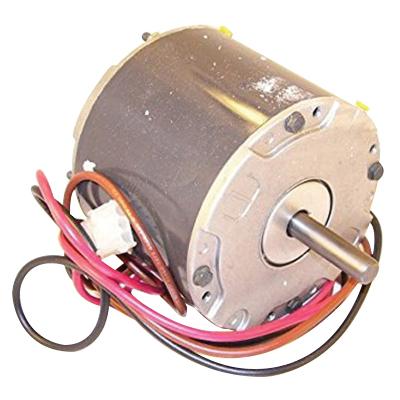

ICP™ Condenser Fan Motor, 208 to 230 VAC, 0.99 A, 1/6 hp, 1110 rpm, 1 ph Phase, 60 Hz, Air Over Motor Enclosure, 42Y Frame, 1/2 in Dia x 1-7/8 in L Shaft, Clockwise Lead End Rotation, 1 Speed, Sleeve Bearing, Belly Band, Through-Bolt Mounting, A Insulation Class, Continuous, Single Sided Flat Shaft Design, 5 in Dia
- Capacitor 5 uF at 370 VAC
- Thermal protected
- Modular plug-type connector
