| Electrical Connection | : | 1/4 in Male Quick-Connect |
| End Type | : | Threaded |
| Frequency Rating | : | 60 Hz |
| Gas Type | : | Natural Gas |
| Ignition Type | : | Direct |
| Inlet Size | : | 1/2 in |
| Outlet Size | : | 3/4 in |
| Overall Height | : | 5-3/8 in |
| Overall Width | : | 4-1/16 in |
| Pressure Rating | : | 0.5 psi |
| Temperature Rating | : | -40 to 175 deg F |
| Voltage Rating | : | 24 VAC |
Combination gas control for use with hot surface/direct spark systems in 24 or 120 VAC, gas-fired appliances, with capacities from 30 to 415 cfh.

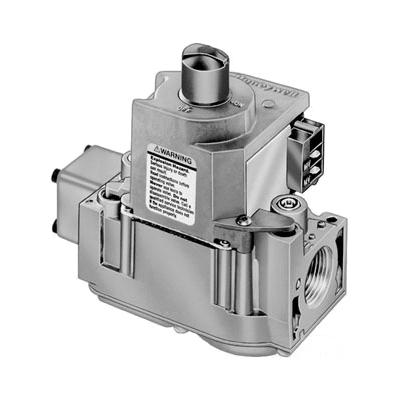

Honeywell Gas Valve, 1/2 in Inlet, 3/4 in Outlet, Threaded End, Natural Gas, Direct Ignition, 0.5 psi, -40 to 175 deg F, 24 VAC, 60 Hz, 1/4 in Male Quick-Connect Electrical Connection, 4-1/16 in Overall Width, 5-3/8 in Overall Height
- Controls include manual valve, two automatic operators and pressure regulator
- Compact size
- Provides two automatic valves
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
- Diaphragm operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
- Meets codes requiring dual safety shut-off
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
- On/off lighting sequence
- Use VR8305 models with S89C,E,F and S87 series 5 and later
- All adjustments, wiring connections and pilot outlet are accessible from top of control
