| Actuation Type | : | Electric |
| Additional Information | : | End Connection: Soldered x Soldered|Input Supply Rating: 7.7 Volt Amp at 24 Volt AC 50/60 Hertz 0.32 Amp|Temperature Rating: 40 to 200 Deg F (Fluid), 125 Deg F (Ambient)|Pressure Rating: 10 PSI (Close-Off), 125 PSI (Static)|Inclusions/Features: Low Voltage, Manual Opener, SPST End Switch|Actuation Type: Electric|Valve Position: Normally Closed|Body Material: Brass|Valve Timing: 30 Second (Open)|Media Handled: Hot Water |
| Body Material | : | Brass |
| End Connection | : | Soldered x Soldered |
| Input Supply Rating | : | 7.7 Volt Amp at 24 Volt AC 50/60 Hertz 0.32 Amp |
| Media Handled | : | Hot Water |
| Nominal Size | : | 3/4 Inch |
| Pressure Rating | : | 10 PSI (Close-Off), 125 PSI (Static) |
| Specifications | : | Nominal Size: 3/4 Inch |
| Temperature Rating | : | 40 to 200 Deg F (Fluid), 125 Deg F (Ambient) |
| Type | : | 3-Way, 2-Position, Diverting, Low Voltage |
| Valve Position | : | Normally Closed |
| Valve Timing | : | 30 Second (Open) |

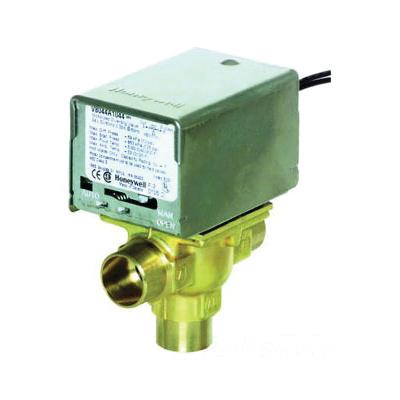

3-WAY, 2-POSITION, DIVERTING, LOW VOLTAGE TYPE; 7.7 VOLT AMP AT 24 VOLT AC 50/60 HERTZ 0.32 AMP INPUT SUPPLY RATING; 3/4 INCH NOMINAL SIZE; UL, CSA APPLICABLE STANDARD; HYDRONIC CONTROL APPLICATION
- 3-WAY, 2-POSITION, DIVERTING, LOW VOLTAGE TYPE; 7.7 VOLT AMP AT 24 VOLT AC 50/60 HERTZ 0.32 AMP INPUT SUPPLY RATING; 3/4 INCH NOMINAL SIZE; UL, CSA APPLICABLE STANDARD; HYDRONIC CONTROL APPLICATION
