| Actuator Type | : | 2-Position Spring |
| Amperage Rating | : | 0.32 A |
| Configuration | : | Normally Open, Normally Closed |
| Connection Type | : | Press x Screw |
| Dimensions | : | 4 in H x 2-3/8 in W x 6-7/8 in D |
| Disc Material | : | Buna-N |
| Flow Coefficient (Cv) | : | 8.5 Cv |
| Material | : | Brass |
| Nominal Size | : | 1 in |
| Number of Ways/Position | : | 2-Ways |
| Operator Type | : | Manual |
| Packing Material | : | EPDM |
| Pressure Rating | : | 120 psi |
| Seat Material | : | Brass |
| Stem Material | : | Stainless Steel |
| Temperature Rating | : | 125 deg F |
| Timing Range | : | 15 s |
| VA Rating | : | 7.7 VA |
| Voltage Rating | : | 24 V |

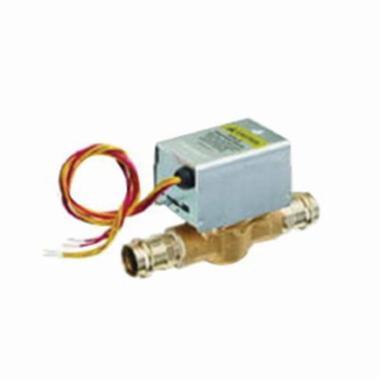

Honeywell Zone Valve With Terminal Block Connection and End Switch, 1 in Nominal, Press x Screw Connection, Number of Ways/Position: 2-Ways, 120 psi, 8.5 Cv Flow Coefficient (Cv), Manual Operator, Stainless Steel Stem, EPDM Packing, Buna-N Disc, Brass Seat, Brass, 2-Position Spring Actuator, 15 s Timing, Normally Open, Normally Closed, 0.32 A, 24 V, VA Rating: 7.7 VA, 125 deg F, 4 in H x 2-3/8 in W x 6-7/8 in D
- Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water
- Manual opener (on all models, except straight through, normally open valves) for valve operation on power failure, valve returns to automatic position when power is restored
- All model may be installed without disassembling the valve
- Compact construction for easy installation
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
- Actuator motor may be replaced without removing the valve body or draining the system
