| Actuator Type | : | 2-Position Spring |
| Amperage Rating | : | 0.32 A |
| Configuration | : | Normally Closed, SPST |
| Connection Type | : | Solder |
| Dimensions | : | 5-1/4 in H x 3-1/2 in W x 2-3/8 in D |
| Flow Coefficient (Cv) | : | 3.5 Cv |
| Material | : | Brass |
| Model | : | V8043F |
| Nominal Size | : | 3/4 in |
| Number of Ways/Position | : | 2 |
| Packing Material | : | EPDM |
| Seat Material | : | Brass |
| Stem Material | : | Stainless Steel |
| Timing Range | : | 15 s |
| VA Rating | : | 7.7 VA |
| Voltage Rating | : | 24 VAC |

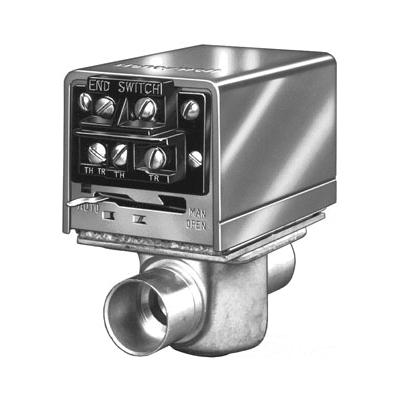

Honeywell Motorized Zone Valve, Model: V8043F, 3/4 in Nominal, Solder Connection, Number of Ways/Position: 2, 3.5 Cv Flow Coefficient (Cv), Stainless Steel Stem, EPDM Packing, Brass Seat, Brass, 2-Position Spring Actuator, 15 s Timing, Normally Closed, SPST, 0.32 A, 24 VAC, VA Rating: 7.7 VA, 5-1/4 in H x 3-1/2 in W x 2-3/8 in D
- Two way on-off line voltage valves consist of an actuator motor and valve assembly for controlling the flow of hot or chilled water
- Compact construction for easy installation
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
- Motor may be replaced without removing the valve body or draining the system
