| Electrical Connection | : | 1/4 in Quick-Connect |
| End Type | : | Threaded |
| Frequency Rating | : | 60 Hz |
| Gas Type | : | Natural Gas |
| Ignition Type | : | Standing Pilot |
| Inlet Size | : | 1/2 in |
| Outlet Size | : | 3/4 in |
| Overall Height | : | 4-3/4 in |
| Overall Width | : | 4-1/16 in |
| Pressure Rating | : | 0.5 psi |
| Temperature Rating | : | 32 to 175 deg F |
| Voltage Rating | : | 24 VAC |
Used on gas fired standing pilot appliances with 30 mV thermocouple. These gas controls include a manual gas valve, safety shut-off, single millivoltage automatic operator, pressure regulator, pilot gas filter and flow adjustment, pressure tapping and thermocouple connector.

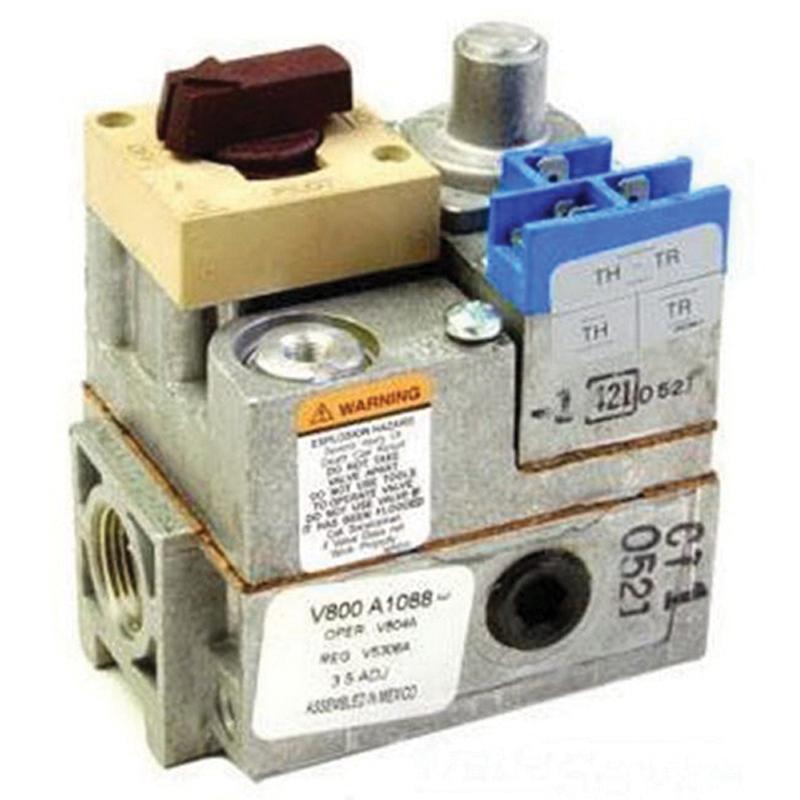

Honeywell Gas Valve, 1/2 in Inlet, 3/4 in Outlet, Threaded End, Natural Gas, Standing Pilot Ignition, 0.5 psi, 32 to 175 deg F, 24 VAC, 60 Hz, 1/4 in Quick-Connect Electrical Connection, 4-1/16 in Overall Width, 4-3/4 in Overall Height
- Include pilot flow adjustment screw
- Easy-to-install, adjust and service, all adjustments and connections are accessible from top of control
- Add separate energy cut-off (ECO) where codes call for dual safety shut-off
- Complete safety shut-off on pilot flame failure
- LITE-RITE (off-pilot-on) lighting sequence
