| Amperage Rating | : | 12 A |
| Contact Configuration | : | SPDT |
| Depth | : | 3-3/32 in |
| Frequency Rating | : | 50/60 Hz |
| Height | : | 4-1/2 in |
| Input Voltage | : | 120 V |
| Power Rating | : | 12 W, 3/4 hp, 40 VA |
| Width | : | 4-3/16 in |

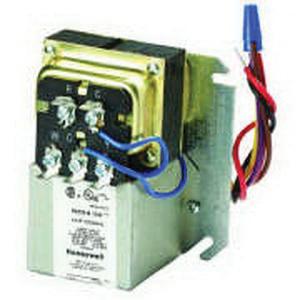

Honeywell Fan Control Center Relay, 120 V Input, 12 A, 12 W, 3/4 hp, 40 VA, 50/60 Hz, SPDT, 4-1/2 in Height, 4-3/16 in Width, 3-3/32 in D
- NEMA standard type "D" transformer (included) powers 24 VAC control systems
- Provides overload protection for transformer
- Convenient connections for thermostat and heating and cooling equipment wiring
- Mounts on standard 4 x 4 in junction box
- Can be mounted in any indoor location without additional enclosure
- Relay is easily replaced without disturbing wiring
- Includes R8222B relay and enclosure
- Inrush - 20 V-A maximum, 17 V-A nominal, sealed - 10 V-A maximum, 9 V-A nominal
- NEMA standard DC20-1992
