| Amperage Rating | : | 7.4 A at 120 VAC, 3.7 A at 240 VAC Full Load, 44.4 A at 120 VAC, 22.2 A at 240 VAC Locked Rotor |
| Dimensions | : | 4-1/8 in W x 4-3/8 in H x 2-1/2 in D |
| Temperature Rating | : | -40 to 54 deg C |
| Voltage Rating | : | 120 - 240 VAC |

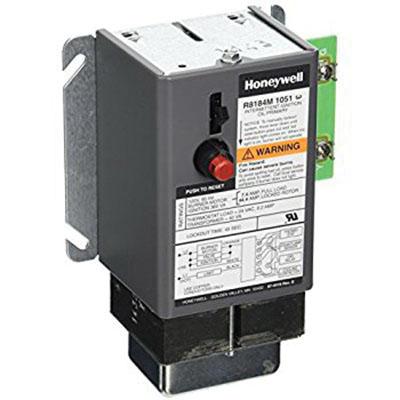

Honeywell Protectorelay Oil Burner Control, 120 - 240 VAC, 7.4 A at 120 VAC, 3.7 A at 240 VAC Full Load, 44.4 A at 120 VAC, 22.2 A at 240 VAC Locked Rotor, -40 to 54 deg C, 4-1/8 in W x 4-3/8 in H x 2-1/2 in D
- Operates the oil burner and oil valve (if desired) in response to a call for heat from a low voltage control circuit
- Intermittent ignition is on while the burner is on
- Solid state flame sensing circuit
- External button to manually reset safety switch after lockout
- Enclosed safety switch must be manually reset after safety shutdown
- Mounts on standard 4 x 4 in junction box
- C554A cadmium sulfide flame detector and 24 VAC thermostat required
- R8184M includes 40 V-A transformer and Y and G terminals for connection of cooling equipment
