| Connection Type | : | Quick Connect/Screw |
| Contact Configuration | : | SPST |
| Dimensions | : | 4-3/8 in L x 3-1/16 in W x 6-1/8 in H |
| Frequency Rating | : | 60 Hz |
| Mounting Type | : | Vertical |
| Pressure Rating | : | 200 psi on Outside of Immersion Well, 100 psi on Capsule If Inserted Directly Maximum Safe Operating |
| Temperature Rating | : | 130 to 240 deg F High Limit, 110 to 220 deg F Low Limit; 10 deg F Fixed High Limit; 10 to 25 deg F Adjustable Low Limit Differential |
| Voltage Rating | : | 120 VAC |

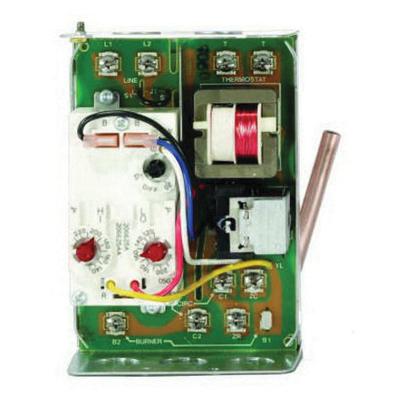

Honeywell Triple Aquastat Relay, 120 VAC, 60 Hz, 200 psi on Outside of Immersion Well, 100 psi on Capsule If Inserted Directly Maximum Safe Operating, Quick Connect/Screw, SPST, Vertical Mount, 130 to 240 deg F High Limit, 110 to 220 deg F Low Limit; 10 deg F Fixed High Limit; 10 to 25 deg F Adjustable Low Limit Differential, 4-3/8 in L x 3-1/16 in W x 6-1/8 in H
- Immersion-type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems, including domestic hot water service
- Require 24 VAC thermostat with heat anticipator set at 0.2 A (plus current draw of gas valve on L8124E)
- Include diaphragm powerhead and micro switch assembly that respond to temperature changes in boiler water
- Mount directly to boiler
- Provide multi-zone control by using a separate circulator and R845 relay for each zone
- Electrical burner rating: 1.25 A at 24 VAC; 30 V-A (total load) terminals B1-B2 and TV-Z
- Electrical circulator rating: at full load: 7.4 A at 120 VAC, 3.7 A at 240 VAC; at locked rotor: 44.4 A at 120 VAC, 22.2 A at 240 VAC
- 0 - 95% RH non-condensing environmental conditions
