| Contact Rating | : | Full Load: 7.4 A at 120 VAC, Locked Rotor: 44.4 A at 120 VAC |
| Differential Temperature | : | 5 to 20 deg F Fixed High Limit, 10 to 25 deg F Adjustable Low Limit |
| Dimensions | : | 4-1/4 W x 7-1/8 in H x 2-5/8 in D |
| Mounting Type | : | Horizontal/Vertical |
| Temperature Rating | : | 130 to 240 deg F High Limit, 110 to 220 deg F Low Limit |
| Voltage Rating | : | 120 VAC |

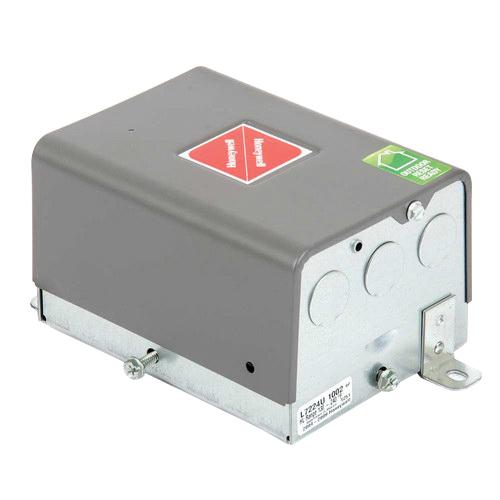

The L7224U oil electronic aquastat controller provides electronic temperature sensing in a UL limit-rated controller, controls the circulator, oil burner and boiler temperature, and provides status, LED diagnostic and EnviroCOM communication.
Honeywell Electronic Oil Aquastat, 120 VAC, Full Load: 7.4 A at 120 VAC, Locked Rotor: 44.4 A at 120 VAC Contact, Horizontal/Vertical Mount, 130 to 240 deg F High Limit, 110 to 220 deg F Low Limit, 5 to 20 deg F Fixed High Limit, 10 to 25 deg F Adjustable Low Limit Differential, 4-1/4 W x 7-1/8 in H x 2-5/8 in D
- EnviraCOM, a low-cost 3-wire communication protocol that allows different devices, such as communicating thermostats, aquastats and oil primaries, to connect and share information
