| Actuator Type | : | Solenoid, Diaphragm |
| Additional Information | : | 150000/15000/200000 Btu/hr BTU Rating, Straight-Thru Body, Standard Opening |
| Electrical Connection | : | 1/4 in Quick-Connect Male Terminal |
| End Connection | : | Threaded x Threaded |
| End to End Distance | : | 4.44 Inch |
| Frequency Rating | : | 50/60 Hz |
| Gas Type | : | LP, Natural |
| Ignition Type | : | Direct |
| Inlet Size | : | 1/2 in |
| Input Supply Rating | : | 24 Volt AC 50/60 Hertz |
| Nominal Size | : | 1/2 Inch x 1/2 Inch |
| Outlet Size | : | 1/2 in |
| Overall Height | : | 3.38 in |
| Overall Length | : | 4.44 in |
| Overall Width | : | 2.7 in |
| Pressure Rating | : | 0.5 psi |
| Specifications | : | Nominal Size: 1/2 Inch x 1/2 Inch |
| Supply Connection | : | 1/4 Inch Quick-Connect Male Terminal |
| Temperature Rating | : | -40 to 175 deg F |
| Type | : | 1-Stage, Standard Opening, Dual, Automatic, Straight-Through |
| Voltage Rating | : | 24 VAC |
Combination gas controls for use with hot surface/direct spark systems in 24 Vac, gas-fired appliances with capacities from 30 to 415 cfh. The VR8215 valve can be mounted in any orientation and the reduced installation turning radius makes it much easier to install.

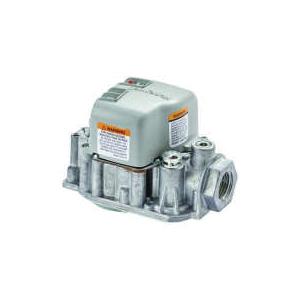

Honeywell Home Gas Valve, 1/2 in Inlet, 1/2 in Outlet, LP, Natural Gas, Direct Ignition, 0.5 psi, -40 to 175 deg F, 24 VAC, 50/60 Hz, 1/4 in Quick-Connect Male Terminal Electrical Connection, 4.44 in Overall Length, 2.7 in Overall Width, 3.38 in Overall Height, Additional Information: 150000/15000/200000 Btu/hr BTU Rating, Straight-Thru Body, Standard Opening
- Controls include manual valve, two automatic operators, and pressure regulator
- Provide two automatic valves that function independently, allowing one to act as a failsafe for the other
- Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends
- Diaphragm operated second automatic valve opens under control of the regulator; closes if gas or power supply is interrupted
- Meet codes requiring dual safety shutoff
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves
- ON-OFF lighting sequence
- All adjustments, wiring connections and pilot outlet are accessible from top of control
