| Amperage Rating | : | 8/5.1/48/30.6 A |
| Bulb Size | : | 3/8 x 2-7/8 in |
| Capillary Length | : | 1-1/2 in |
| Color | : | Gray |
| Connection Type | : | NPT |
| Contact Configuration | : | SPST |
| Mounting Type | : | Horizontal, Vertical |
| Sensing Element | : | Copper |
| Switching Action | : | SPST |
| Temperature Rating | : | 100 to 240 deg F |
| Voltage Rating | : | 120/240 V |
| Well Spud Size | : | 1/2 in |

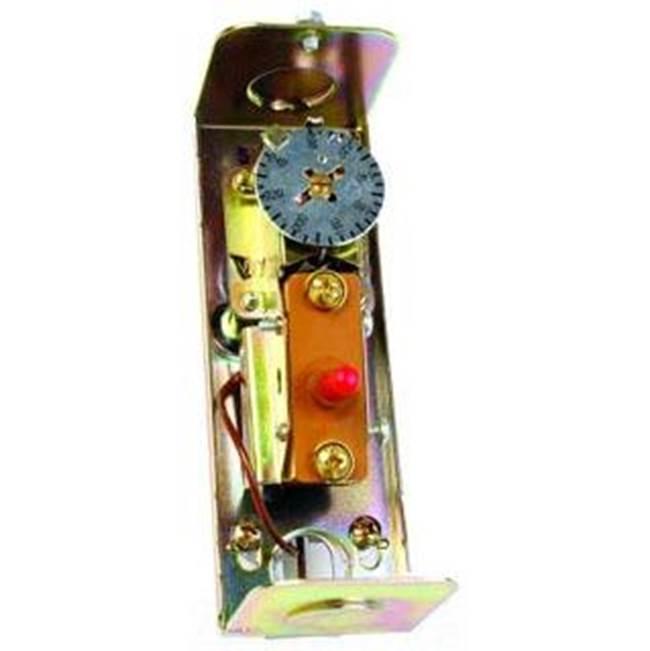

Aquastat® controllers from Resideo are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks and other applications where temperature control is required. L4006 are used in applications that utilize the existing wells.
Honeywell Home Aquastat Controller, 8/5.1/48/30.6 A, 120/240 V, 3/8 x 2-7/8 in Bulb Size, 1-1/2 in Capillary Length, 1/2 in Well Spud Size, NPT Connection, SPST Contact Configuration, Copper Sensing Element, SPST Switching Action, Horizontal, Vertical Mounting, Gray, 100 to 240 deg F
- Totally enclosed Micro Switch™ snap acting switches operate on temperature rise to set point
- Visible control point scale and external adjustment screw permit easy setting
- Horizontal or vertical insertion of the sensing element
- Direct or well immersion of the sensing element
- Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications
