| Body Material | : | Bronze |
| Connection Type | : | FNPT x Threaded Union |
| Dimensions | : | 3-10/64 in L x 5-53/64 in H |
| Flow Rate | : | 15.72 gpm |
| Nominal Size | : | 1/2 in |
| Pressure Rating | : | 250 psi Maximum Inlet, 60 psi Outlet, 25 to 90 psi Reduced Pressure |
| Series | : | DS06 Series |
| Temperature Rating | : | 33 to 140 deg F Ambient, 140 deg F Water |

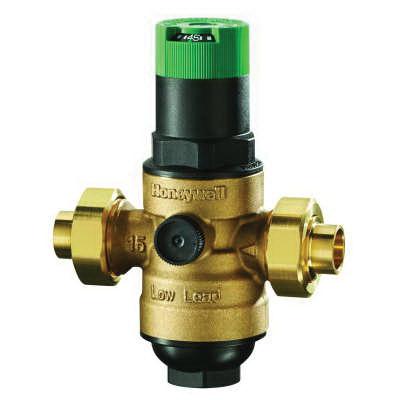

The Honeywell DS06 Dial Set Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).
Honeywell DialSet Pressure Regulating Valve, DS06 Series, 1/2 in Nominal, FNPT x Threaded Union Connection, 250 psi Maximum Inlet, 60 psi Outlet, 25 to 90 psi Reduced Pressure, 15.72 gpm Flow Rate, Bronze Body, 33 to 140 deg F Ambient, 140 deg F Water, 3-10/64 in L x 5-53/64 in H
- Built-in Dial-Set-no gauge is needed to install or set static pressure
- Built-in strainer to simplify maintenance
- Fabric reinforced diaphragm regulator, stainless steel and engineered thermoplastics internal parts
- Balanced single seat construction
- Minimum pressure differential between inlet and outlet ports is 14.5 psi
- +/- 4 psi dial calibration
- Less than 0.25% of weighted average of low-lead content
- 1/4 in NPT gauge tap
- 10:1 maximum reducing ratio
- One-union threaded union fittings
