| Amperage Rating | : | 9.1 to 15 A |
| CFM Rating | : | 540 to 2000 cfm |
| Dimensions | : | 24-1/2 in W x 20-1/2 in D x 25 in H |
| Finish | : | Powder-Coated |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 3/4 hp |
| Material | : | Steel |
| Nominal Capacity | : | 5 ton |
| Phase | : | 1 ph |
| Voltage Rating | : | 208/230 V |

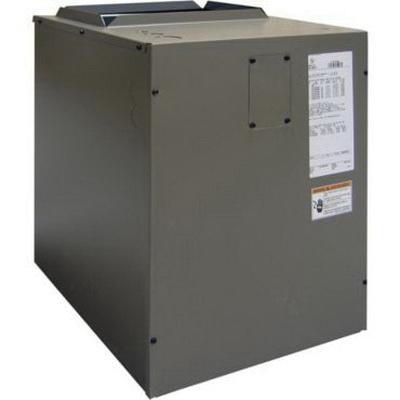

HEIL® Multi-Position Modular Blower Cabinet, 5 ton Nominal, 208/230 V, 9.1 - 15 A, 3/4 hp, 60 Hz, 1 -Phase, 540 - 2000 cu-ft/min, Steel, Powder-Coated, 24-1/2 in W x 25 in H x 20-1/2 in D
- Supports two-stage outdoor units
- 80% airflow dehumidification speed
- 50% airflow efficient low continuous fan selection
- Upflow, horizontal right or left applications
- Downflow requires sub-base accessory
- Electronic fan control board
- Adjustable blower time delay
- Accepts accessory two-stage outdoor thermostats
- Matches with AC and hp cased coils
- Requires a "no heat kit" if installed without electric heat
- Direct drive slide-out blower assembly
- Internally lined with 1/2 in insulation
