| Amperage Rating | : | 13.5 A |
| CFM Rating | : | 2595 cfm |
| Compressor Type | : | Scroll |
| Cooling Capacity | : | 24000 Btu/hr |
| Dimensions | : | 36-11/16 in H x 35 in W x 35 in D |
| EER Rating | : | 12 |
| Face Area | : | 22.69 sq-ft |
| Finish | : | Galvanized/Powder-Coated |
| Fins per Inch | : | 20 FPI |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 20 A |
| HP Rating | : | 1/10 hp |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Model | : | DXT+ |
| Motor Type | : | PSC |
| Nominal Capacity | : | 2 ton |
| Number of Stages | : | 2 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 825 rpm |
| SEER Rating | : | 16 |
| Series | : | H4A6 Series |
| Sound Level | : | 72 dBA |
| Suction Line Size | : | 3/4 in |
| Voltage Rating | : | 208/230 V |

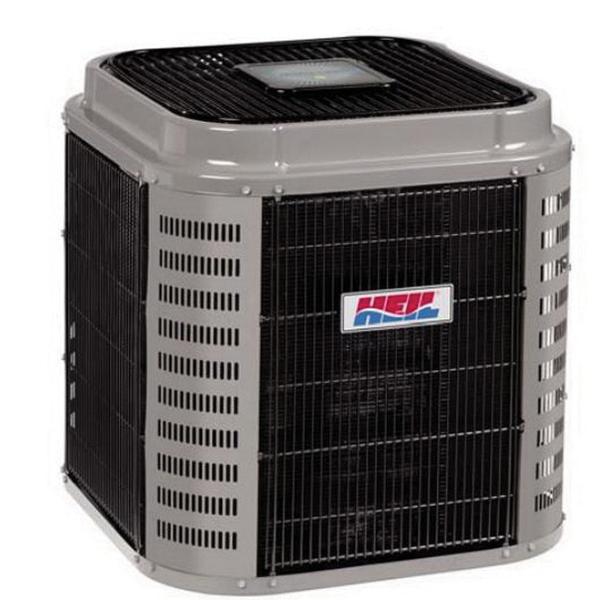

HEIL® Split-System Air Conditioner, H4A6 Series, Model: DXT+, 2 ton Nominal Capacity, 24000 Btu/hr Cooling Capacity, 208/230 V, 13.5 A, 1/10 hp, 825 rpm Rotational Speed, 60 Hz, 1 ph Phase, Scroll Compressor, 2595 cfm, 12 EER Rating, 16 SEER, 2 Stages, R-410A Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, 72 dBA Sound Level, 20 A Fuse Rating, 22.69 sq-ft Face Area, PSC Motor, 20 FPI Fins per Inch, Steel, Finish: Galvanized/Powder-Coated, 36-11/16 in H x 35 in W x 35 in D
- Sales code
- Crankcase heater factory installed
- Filter drier supplied with every unit for field installation
- External high and low refrigerant service ports
- High, low and compressor unloader pressure switches
- Copper tube/aluminum fin coils
- Two-speed fan motors factory wired on all model
- High-performance compressor sound shield standard
- Comfort alert UltraTech™ diagnostics device on all model
- Easy-access service valves on all model
- Innovative control box design
- Fan motor in-line disconnect plug
- Only two-screws to access control panel
- High gloss, baked-on powder-coated finish over galvanized steel
- Post painted (black) coil fins
- Coated, weather-resistant cabinet screws
- 3/8 in spacing coil guard grille
- Corner posts for extra strength and style
