| Amperage Rating | : | 2.6 A |
| Bearing Type | : | Sleeve |
| Dimensions | : | 5-5/8 in Dia |
| Frame Size | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 3/4 hp |
| Motor Enclosure Type | : | Closed |
| Mounting Type | : | Band, Through-Bolt |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Rotation Type | : | Counter-Clockwise |
| Shaft Size | : | 5/8 in Dia x 2-7/32 in L |
| Speed Rating | : | 1140 rpm |
| Voltage Rating | : | 230 V |

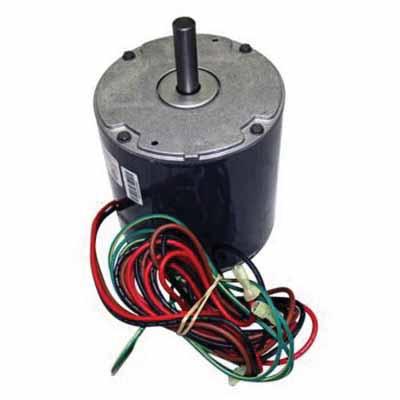

HEIL® Condenser Fan Motor, 230 V, 2.6 A, 3/4 hp, 1140 rpm, 1 ph Phase, 60 Hz, Closed Motor Enclosure, 48 Frame, 5/8 in Dia x 2-7/32 in L Shaft, Counter-Clockwise Rotation, 1 Speed, Sleeve Bearing, Band, Through-Bolt Mounting, 5-5/8 in Dia
