HBX HBXCPU0600

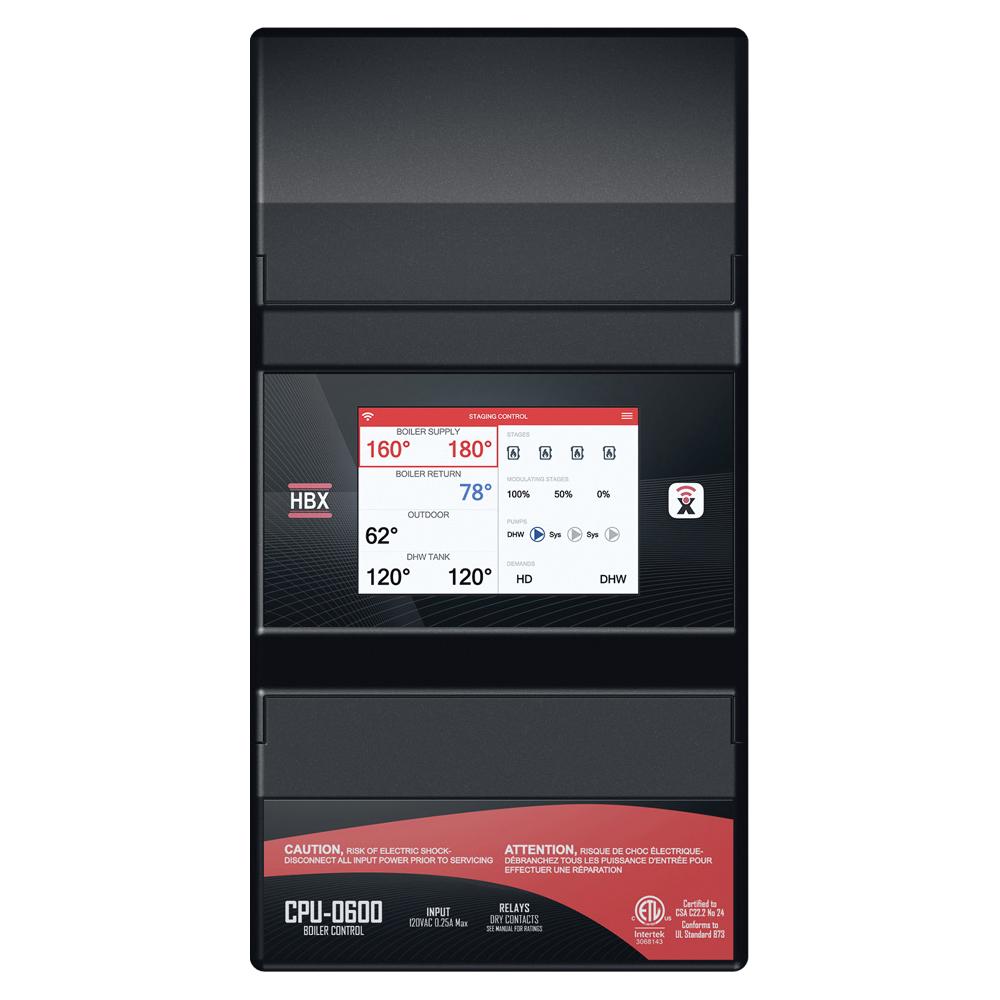

HBX CPU-0600 Wi-Fi Enabled Boiler Control, 10 kOhm Thermistor Sensor, 15 A

Manufacturer: HBX Control Systems Inc
Part #: HBXCPU0600
Customer Part #:
Login for Availability
Login for Price
Additional Information      :      2.4 GHz Wi-Fi Network, 16-bit 140 MHz Microprocessor
Amperage Rating      :      15 A
Contact Rating      :      24 V, 1 A
Dimensions      :      9.83 in H x 5.16 in W x 2.64 in D
Frequency Rating      :      50/60 Hz
Lead Length      :      12 in
Sensor Type      :      10 kOhm Thermistor
Temperature Rating      :      50 to 104 deg F
Voltage Rating      :      120 V
Wire Size      :      18 AWG

The CPU-0600 is a Wi-Fi enabled boiler control that covers a wide variety of applications from a single unit, reducing the number of different controls on your shelf. The CPU-0600 accommodates for boiler staging, system mixing, pump sequencer, dual and differential setpoint applications in a condensed package with extensive flexibility. In staging and mixing applications, the CPU-0600 can accommodate for multi boiler staging with outdoor temperature reset. The control can provide lead lag and boiler rotation on time or boiler cycles with capability of controlling Domestic hot water (DHW).

HBX Wi-Fi Enabled Boiler Control, 15 A, 120 V, 50/60 Hz, 10 kOhm Thermistor Sensor, 24 V, 1 A Contact Rating, 12 in Lead Length, 18 AWG Wire, 50 to 104 deg F, 9.83 in H x 5.16 in W x 2.64 in D, Additional Information: 2.4 GHz Wi-Fi Network, 16-bit 140 MHz Microprocessor

  • Multi Staging For Up To 4 Stages Per Module
  • Lead Lag And Rotation On Time Or Cycles
  • Expandable Up To 16 Stages
  • Modulating Boiler Control (0-10 Vdc)
