| Area | : | 0.425 sq-ft |
| CFM Rating | : | 425 cfm |
| Deflection Angle | : | 45 deg |
| Deflection Type | : | 2-Way |
| Finish | : | Bright White Enamel |
| Grille Spacing | : | 1/3 in |
| Height | : | 9-1/4 in |
| Length | : | 1-5/8 in |
| Material | : | Steel |
| Series | : | 661 Series |
| Size | : | 12 x 8 in |
| Width | : | 13-1/4 in |

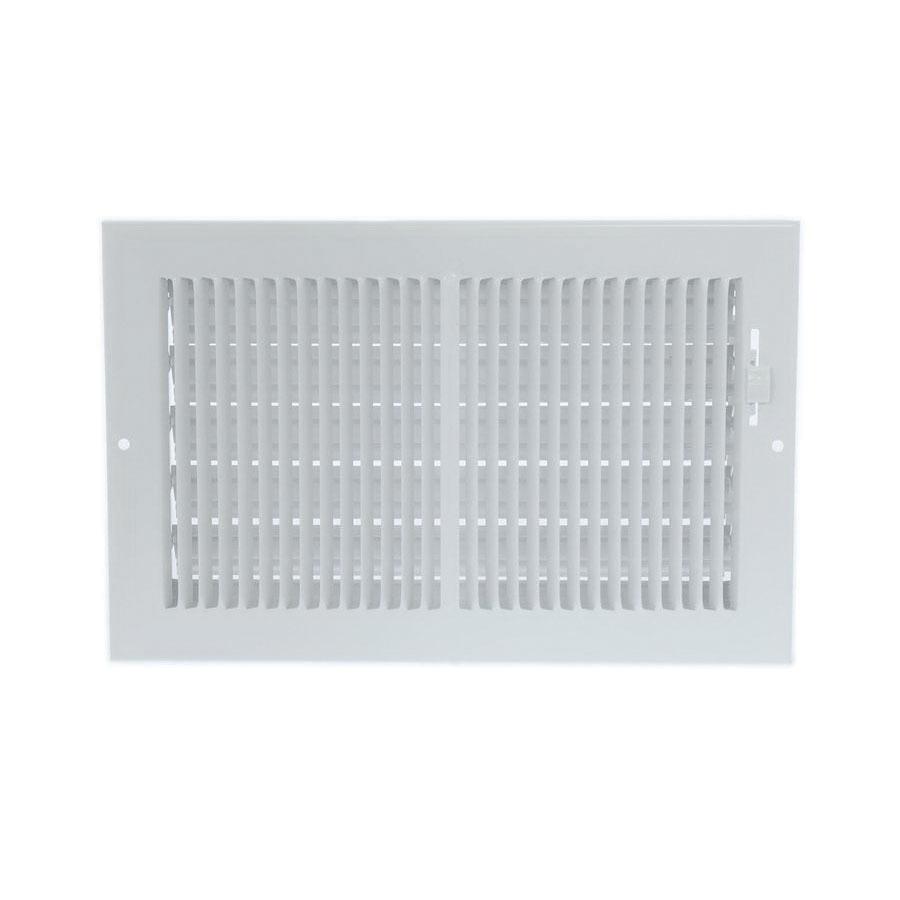

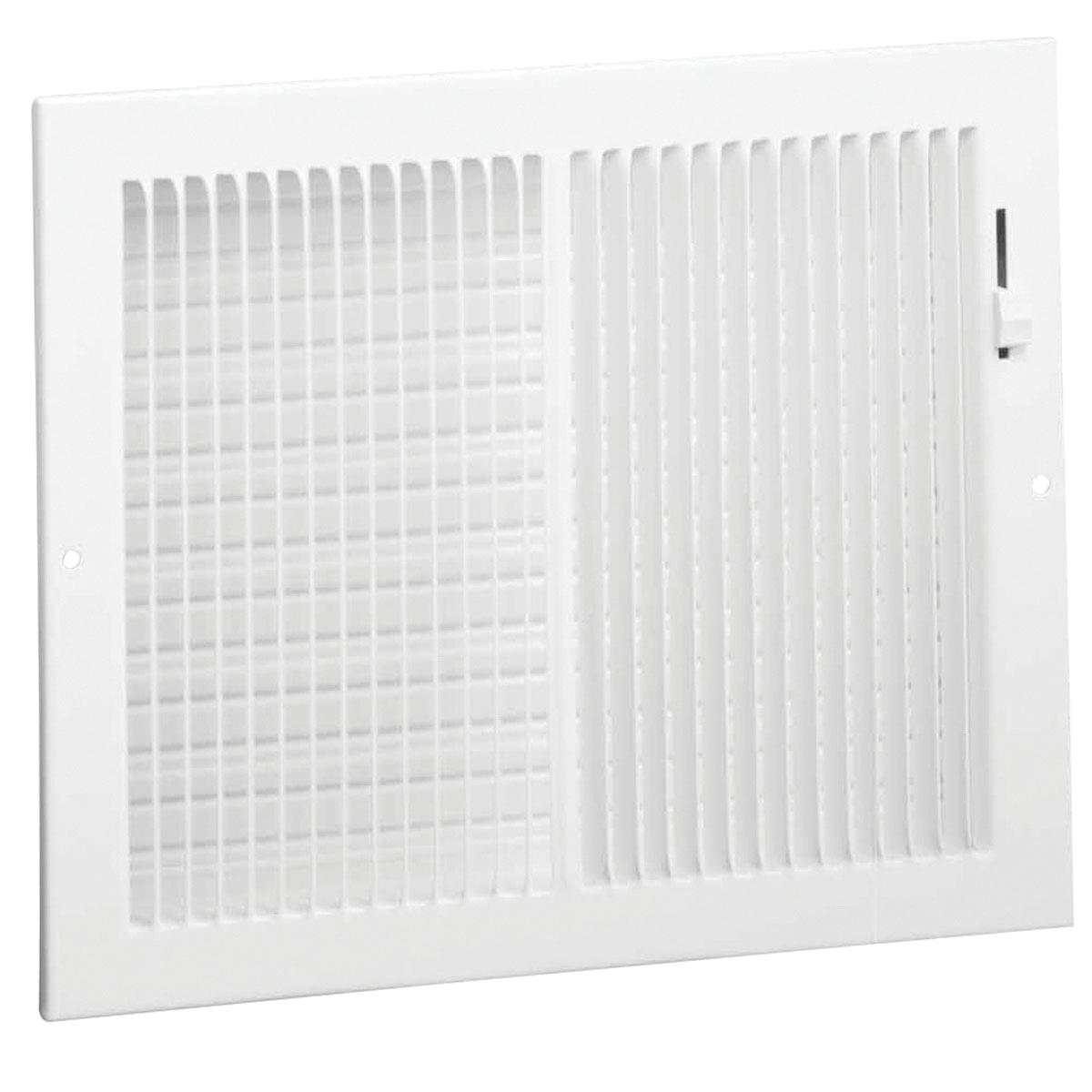

Hart & Cooley® Stamped Face Register, Series: 661 Series, 12 x 8 in, 1/3 in Grille Spacing, 2-Way Deflection, 45 deg Deflection Angle, 425 cfm Rating, 0.425 sq-ft Area, 1-5/8 in Length, 13-1/4 in Width, 9-1/4 in Height, Steel, Bright White Enamel
- All steel construction
- 1/3 in spaced fins set at 45 deg
- Galvanized multi-shutter valve
- 1-5/8 in D when fully opened
- Interlocking valve louvers for positive shut-off
- Ideal for shallow duct installations
