| Adjusting Screw | : | Brass "T" screw |
| Body Material | : | Brass |
| Body | : | Brass |
| Bonnet | : | Chrome-plated zinc |
| Cv | : | 0.17 |
| Delivery Pressure Gauge (PSIG) | : | 1000 |
| Delivery Pressure Range (PSIG) | : | 0 - 500 |
| Delivery Pressure Range | : | 0 to 500 psig |
| Diaphragm Material | : | Neoprene |
| Diaphragm | : | Neoprene |
| Duty | : | Medium to heavy |
| Gas Type | : | Argon, Helium, Nitrogen |
| Gas/Gas Service | : | Argon;Helium;Nitrogen |
| GasGasService | : | ArgonHeliumNitrogen |
| Gauge Size | : | 2-1/2 in |
| Gauges | : | 2.5" Gold metallic painted steel dual scale (PSI/kPa) |
| Inlet Connection | : | CGA 580 |
| Maximum Inlet Pressure (PSIG) | : | 3000 |
| ModelName | : | 25GX-500-580 HVAC (Clam) |
| Nozzle | : | Brass |
| Number of Stages | : | 1 |
| Outlet Connection Size | : | 1/4 in |
| Outlet Connection | : | 1/4" 45 deg Flare SAE CGA 165 |
| Pressure Regulation PSIG/100 PSIG | : | 0.2 |
| Recommended Items/Accessories | : | Steel Gauge Guards - Red (Fuel) - PN 4300238;Steel Gauge Guards - Green (Oxygen) - PN 4300239 |
| Seat | : | PTFE Teflon® |
| Supply Pressure Gauge (PSIG) | : | 4000 |
| Supply Pressure Gauge | : | 4000 psig |

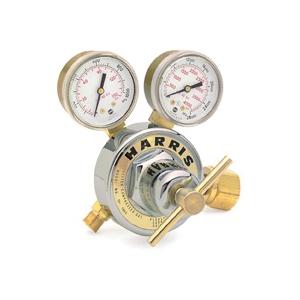

This medium regulator is the traditional workhorse of the Harris regulator line. A time proven design for those who want an economical, high performance regulator.
Harris® Regulator, 1 Stage, Argon, Helium, Nitrogen Gas, 1/4 in Outlet Connection, 2-1/2 in Gauge, 0 to 500 psig Delivery Pressure, 4000 psig Supply Pressure Gauge, Neoprene Diaphragm, Brass Body
- High end features for economical price
- Designed for HVAC and other nitrogen pressure testing and blanketing applications
- Brass "T" screw adjusting handle for easier adjustment at high pressures
- Brass body and chrome-plated zinc bonnet for longer service life
- Neoprene diaphragm for improved pressure control
- 2.5" Steel dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
- Conveniently packaged in clamshell for point-of-purchase display
