| Amperage Rating | : | 3.5 A |
| Connection Type | : | 2-Bolt Flanged |
| Dimensions | : | 8.5 in H x 6.69 in W |
| Flow Rate | : | 65 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/3 hp |
| Material | : | Iron |
| Maximum Head | : | 31 ft |
| Maximum Pressure | : | 145 psi |
| Model | : | UPS 43-100 F |
| Number of Poles | : | 2 |
| Phase | : | 1 ph |
| Power Rating | : | 370 W |
| Series | : | Large Stator UP Series |
| Temperature Rating | : | 104 deg F Ambient, 176 deg F Liquid |
| Voltage Rating | : | 115 V |

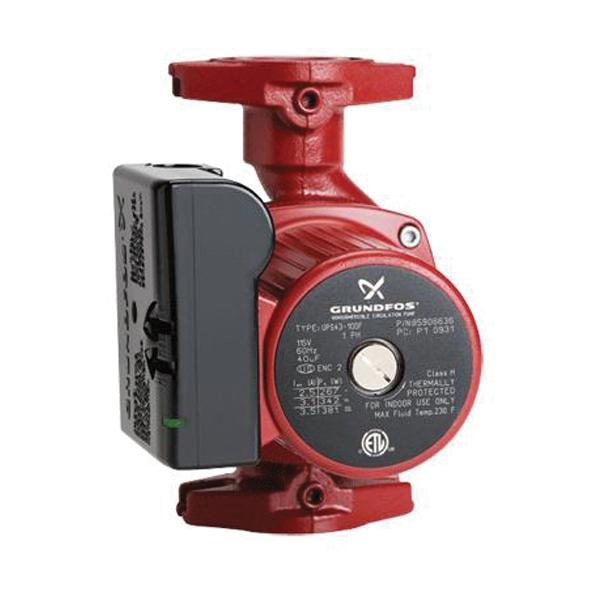

Grundfos Circulator Pump, Large Stator UP Series, Model: UPS 43-100 F, 65 gpm Flow Rate, 31 ft Maximum Head, 370 W, 115 V, 3.5 A, 60 Hz, 145 psi Maximum Pressure, 1/3 hp, 2-Bolt Flanged Connection, 1 ph Phase, 2 Poles, 104 deg F Ambient, 176 deg F Liquid, Iron, 8.5 in H x 6.69 in W
- Ceramic shaft and radial bearings
- Carbon axial bearing
- Stainless steel rotor can and bearing plate
- Corrosion-resistant impeller, composite, PES
- Maintenance-free design
- Removable check valve
