| Additional Information | : | Class B Insulation, <25 dBA Sound Level |
| Connection Type | : | Flanged |
| Dimensions | : | 6.5 in L x 5.7 in W |
| Enclosure Type | : | NEMA 1 |
| Finish | : | Electro-Coated |
| Flow Rate | : | 13.6 gpm |
| Frequency Rating | : | 60 Hz |
| Impeller Type | : | PES Composite |
| Material | : | Cast Iron |
| Maximum Head | : | 19 ft |
| Maximum Pressure | : | 175 psi |
| Model | : | ALPHA 15-58 F 115V 9H |
| Phase | : | 1 ph |
| Power Rating | : | 3 to 38 W |
| Temperature Rating | : | 32 to 131 deg F |
| Voltage Rating | : | 115 V |

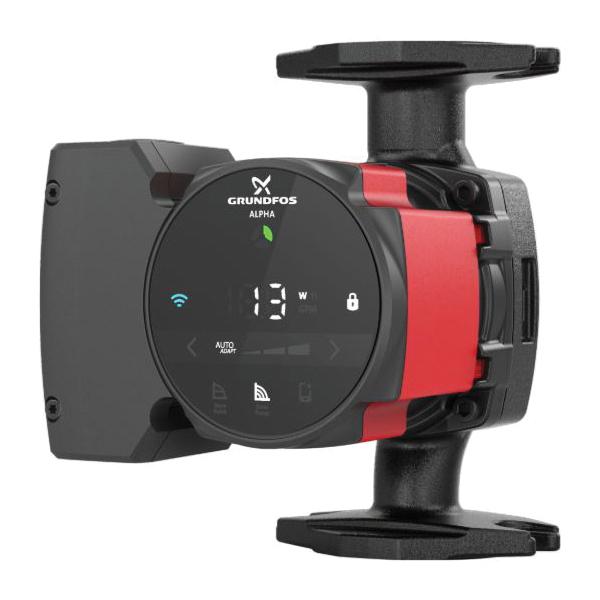

ALPHA is a high efficiency circulator fitted with an electronically commutated motor and designed for circulating liquids in heating systems. The pump features the highest HI energy rating on the market. ALPHA is designed with intelligent controls featuring constant-pressure, proportional pressure and constant speed curves, each with three-speed settings as well as an AUTOADAPT setting, removing the need to manually select the pump set point. The new toolless, removable power connector results in fast and easy installation. Fewer callbacks can be expected due to its robust start-up, self-venting ability and dry-running protection. The system air detection and venting mode can be activated through the Grundfos GO app. Grundfos GO also provides the ability to conveniently troubleshoot the system through the event log, run guided setup, set custom control modes and run firmware updates. Historical trend data for flow, head, estimated media temperature and oncycle durations are available through the app. A terminal box with conduit connections is provided for power connection.
Grundfos Circulator Pump, Model: ALPHA 15-58 F 115V 9H, 13.6 gpm, 19 ft Maximum Head, 3 to 38 W, 115 V, 60 Hz, 175 psi Maximum, Flanged Connection Type, PES Composite Impeller, 1 ph, 32 to 131 deg F, NEMA 1, Cast Iron, Electro-Coated, 6.5 in L x 5.7 in W, Additional Information: Class B Insulation, <25 dBA Sound Level
- Touchscreen user interface
- World class energy efficiency
- Anti-magnetic shafts and bearings
- Robust start function enabling automatic deblocking
- AUTOADAPT function, providing optimal comfort levels at lowest possible energy consumption
- Self-venting pump
- Dry-running protection
- Easy wiring no tools required
- Simple, fast and intuitive setting, control and monitoring via Grundfos GO
- Troubleshooting analysis via Grundfos GO
- System air detection and automatic venting
- Display readouts
