| Additional Information | : | Class B Insulation, <25 dBA Sound Level |
| Connection Type | : | Flanged |
| Dimensions | : | 6.5 in L x 5.3 in W |
| Enclosure Type | : | NEMA 1 |
| Finish | : | Electro-Coated |
| Flow Rate | : | 13.6 gpm |
| Frequency Rating | : | 60 Hz |
| Impeller Type | : | PES Composite |
| Material | : | Cast Iron |
| Maximum Head | : | 19 ft |
| Maximum Pressure | : | 175 psi |
| Model | : | UPSe 15-58 F 115V 9H |
| Phase | : | 1 ph |
| Power Rating | : | 3 to 38 W |
| Temperature Rating | : | 32 to 131 deg F |
| Voltage Rating | : | 115 V |
UPSe is a high efficiency circulator fitted with an electronically commutated motor. It has been designed for circulating liquids in heating systems and offers the highest HI energy rating on the market. The pump features a wide range of controls, featuring constant-pressure, proportional pressure and constant speed curves, each with three settings, making it suitable for almost any heating application. With the use of the Grundfos GO replacement compatibility check, it is easier than ever to make your selection. The new toolless, removable power connector results in fast and easy installation. Fewer callbacks can be expected due to its robust start-up, self-venting ability and dry-running protection. Troubleshooting is also fast and easy by using error codes on the pump user interface. A terminal box with conduit connections is provided for power connection.

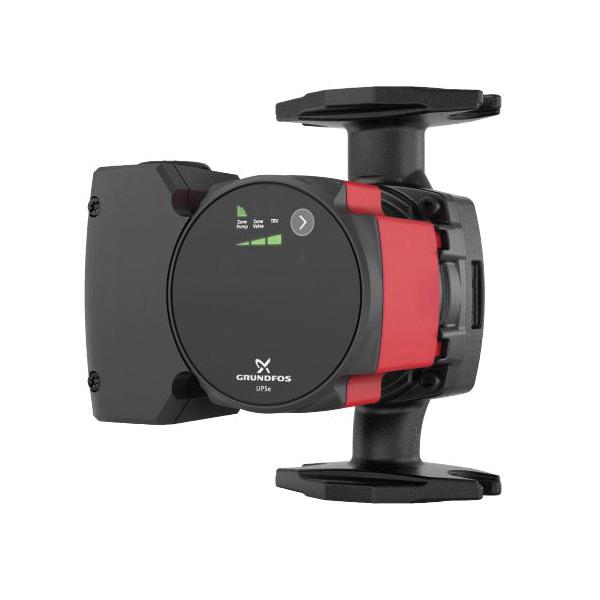

Grundfos Circulator Pump, Model: UPSe 15-58 F 115V 9H, 13.6 gpm, 19 ft Maximum Head, 3 to 38 W, 115 V, 60 Hz, 175 psi Maximum, Flanged Connection Type, PES Composite Impeller, 1 ph, 32 to 131 deg F, NEMA 1, Cast Iron, Electro-Coated, 6.5 in L x 5.3 in W, Additional Information: Class B Insulation, <25 dBA Sound Level
- Best HI energy rating on the market
- Self-venting pump
- Dry-running protection
- Easy wiring
- Robust start-up
- Troubleshooting aid with caution, warning and alarm lights
- Replacement compatibility check through the Grundfos GO app
