| Additional Information | : | PES Impeller Material |
| Amperage Rating | : | 1.3./1.5/1.8 A |
| Connection Size | : | 1/2 in |
| Connection Type | : | Flanged |
| Dimensions | : | 6-1/2 in H x 6 in W |
| Flow Rate | : | 33 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 0.16 hp |
| Material | : | Iron |
| Maximum Head | : | 28.87 ft |
| Maximum Pressure | : | 145 psi |
| Model | : | UPS 26-99 FC |
| Motor Speed Rating | : | 3380 rpm |
| Number of Poles | : | 2 |
| Phase | : | 1 ph |
| Power Rating | : | 197 W |
| Series | : | Large Stator UP Series |
| Temperature Rating | : | 104 deg F Ambient, 230 deg F Liquid |
| Voltage Rating | : | 115 V |

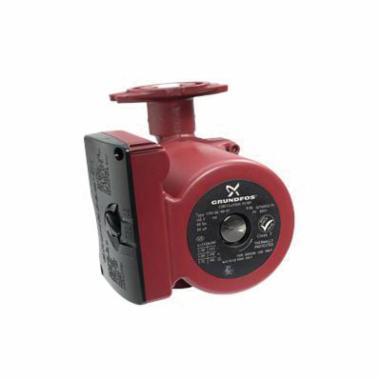

Grundfos Circulator Pump, Large Stator UP Series, Model: UPS 26-99 FC, 33 gpm Flow Rate, 28.87 ft Maximum Head, 197 W, 115 V, 1.3./1.5/1.8 A, 60 Hz, 145 psi Maximum Pressure, 3380 rpm Motor Speed Rating, 0.16 hp, 1/2 in Connection, Flanged Connection, 1 ph Phase, 2 Poles, 104 deg F Ambient, 230 deg F Liquid, Iron, 6-1/2 in H x 6 in W, Additional Information: PES Impeller Material
- Built-in motor protection for longer life and better performance
- Whisper quiet operation for sound sensitive installations
- Stainless steel rotor can and bearing plate
- Multiple accessories for a variety of applications
- Integral check valve
