| Amperage Rating | : | 14.5 A |
| Cord Length | : | 20 ft |
| Dimensions | : | 19 in L x 12 in W x 8-1/4 in H |
| Discharge Size | : | 2 in |
| Efficiency | : | 55 % |
| Flow Rate | : | 185 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 hp |
| Impeller Material | : | Cast Iron |
| Impeller Size | : | 5 in Dia |
| Insulation Class | : | B |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 38 ft |
| Model | : | 3886 |
| Phase | : | 1 ph |
| Series | : | WS Series |
| Speed Rating | : | 1750 rpm |
| Temperature Rating | : | 104 deg F Continuous, 140 deg F Intermittent |
| Voltage Rating | : | 115 V |

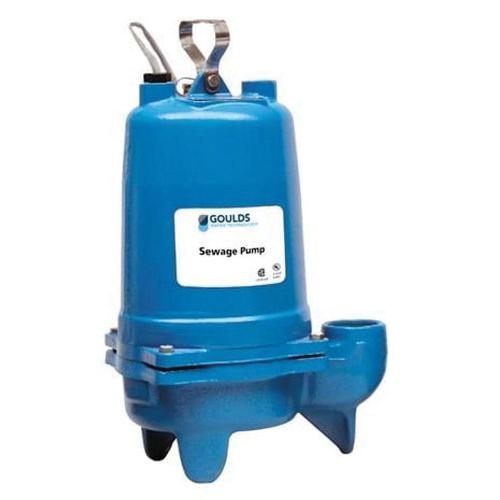

Goulds Sewage Pump, WS Series, Model: 3886, 115 V, 14.5 A, 60 Hz Frequency, HP Rating: 1/2 hp, 1750 rpm Speed, 185 gpm Flow Rate, 1 ph, 2 in Discharge, Impeller Size: 5 in Dia, 20 ft Cord Length, 55 % Efficiency, Maximum Feet of Head: 38 ft, Insulation Class: B, 104 deg F Continuous, 140 deg F Intermittent, Cast Iron Impeller, Dimensions: 19 in L x 12 in W x 8-1/4 in H, Cast Iron
- 2 in solids handling capabilities
- 2 in NPT discharge
- Dynamically balanced non-clog impeller
- Corrosion-resistant stainless steel shaft
- Cast iron, semi-open, dynamically balanced, non-clog impeller with pump out vanes for mechanical seal protection
- Cast iron volute-type casing for maximum efficiency, designed for easy installation on A10-20 guide rail or base elbow rail systems
- Silicon carbide versus silicon carbide sealing faces for superior abrasive resistance, stainless steel metal parts, Buna-N elastomers
- Corrosion-resistant stainless steel threaded design shaft
- Locknut on all models to guard against component damage on accidental reverse rotation
- Capable of running dry without damage to components
- Fully submerged in high-grade turbine oil for lubrication and efficient heat transfer
- All single phase models feature capacitor start motors for maximum starting torque
- Built-in overload with automatic reset
- SJTOW or STOW severe duty oil and water-resistant power cords
- Designed for continuous operation, pump ratings are within the motor manufacturer's recommended working limits, can be operated continuously without damage when fully submerged
- Severe duty-rated, oil and water-resistant 20 ft power cable
- Motor cover O-ring assures positive sealing against contaminants and oil leakage
