| Additional Information | : | 3-3/8 in Height from Floor to Center of Base Opening |
| Connection Size | : | 1-1/4 in |
| Connection Type | : | NPTF |
| Diameter | : | 22 in |
| Height | : | 60-11/16 in |
| Liner Material | : | Polypropylene |
| Precharge Rating | : | 38 psi |
| Pressure Rating | : | 125 psi |
| Series | : | T Series |
| Tank Capacity | : | 84.9 gal |
| Tank Color | : | Blue |
| Tank Finish | : | Powder-Coated |
| Tank Material | : | Steel |
| Temperature Rating | : | 120 deg F |

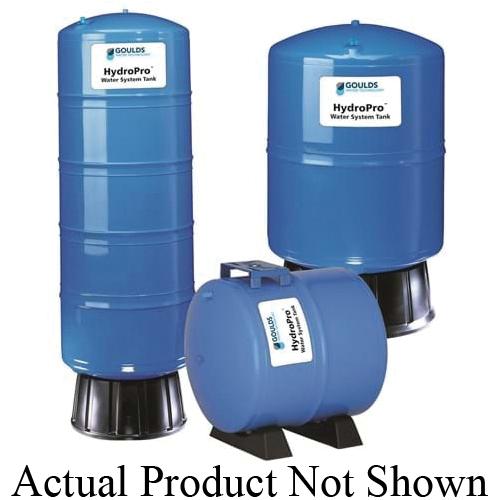

Goulds HydroPro® Diaphragm Tank, T Series, 84.9 gal Tank, 22 in Diameter, 60-11/16 in Height, 1-1/4 in Connection, NPTF Connection, Polypropylene Liner, 120 deg F, 125 psi, 38 psi Precharge, Steel Tank, Powder-Coated Tank, Blue Tank, Additional Information: 3-3/8 in Height from Floor to Center of Base Opening
- Feature a universal jet pump bracket and (2) bolt-on, corrosion-resistant, high density polypropylene ft for installations with limited headspace, such as under mobile homes
- Deep drawn steel shells provide maximum material strength, inner shell prevents diaphragm from over expanding
- Heavy-duty parabolic diaphragm design has improved diaphragm life by reducing abrasive wear
- The diaphragm separates air and water to maintain the tanks air charge
- Heavy-duty polypropylene base eliminates corrosion
